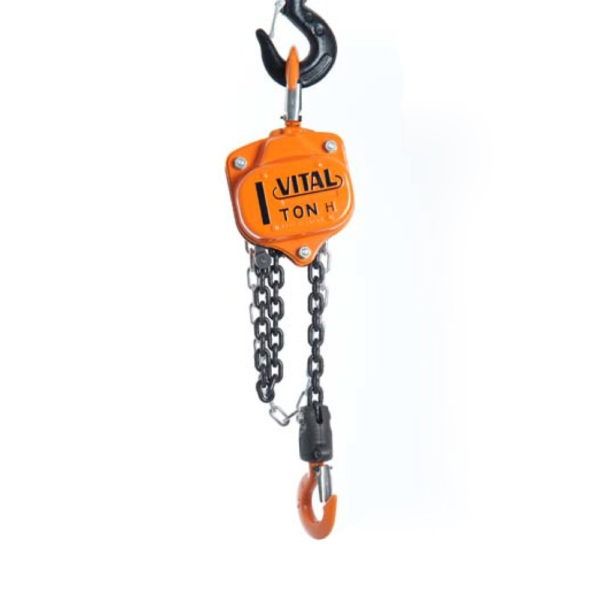

CHAIN BLOCK 1 TON X 2.5M
In stock
Only 4 left
SKU
TT-VH5-10
TTD $2,299.01
PRODUCT FEATURES
With its superior power, it greatly improves your work efficiency
Rated Load: 1 t
Standard Lifting Height: 8.6 ft (2.5 m)
Weight: 25.3 lbs (11.5 kg)
Load chain wire diameter x number of hooks: 0.2 x 0.2 inches (6.3 x 1 mm)
Working Load (t): 1.5
Bottom hook safety hardware included
Uses a strong baked chain and top and bottom hook with thrust bearing
With its superior power, it greatly improves your work efficiency
Rated Load: 1 t
Standard Lifting Height: 8.6 ft (2.5 m)
Weight: 25.3 lbs (11.5 kg)
Load chain wire diameter x number of hooks: 0.2 x 0.2 inches (6.3 x 1 mm)
Working Load (t): 1.5
Bottom hook safety hardware included
Uses a strong baked chain and top and bottom hook with thrust bearing
Attachments (1)
INCLUDES
(1) Vital Industry VH5-10 Chain Block, VH Type, 3.3 x 8.5 ft (1 tx 2.5 m)
PRODUCT DESCRIPTION
Vital is a Japanese brand which is globally recognised for their high quality products. Their range of chain blocks are suited for many applications in the mining, construction, industrial and automotive industry. They have proven to be an economical method to lift heavy loads with ease. The capacities vary from 0.5 tonne to 20 tonne and all chain blocks can be supplied with overload protection for added security of use. Lifting capacity 1 ton. It is a ball bearing type chain hoist. Made from Japan, beautiful shape, compact size, light weight. Resistant to high tensile strength and has a long service life. Single chain type with a standard lifting distance of 2.5 meters. The lifting force is 33 kilograms.

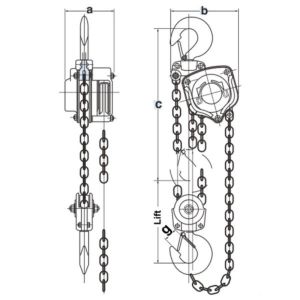

a - 149mm
b - 158mm
c - 324mm
g - 30mm
Applications:
-Uprooting trees
-Installing under-water pump
-Laying conduits and pipelines.
-And much more.
TECHNICAL SPECIFICATIONS
Manufacturer: Vital Industrial
Part number: VH5-10
Capacity (t): 1
Model Number: VH5-10
Stand Lift (m): 2.5
Item Weight: 25.35lbs
Head Room (mm): 345
Pull to Lift (kgf): 33
Load (N): 324
Test Load (t): 1.5
Product Dimensions: 15 x 16 x 18 cm
Additional Information
Shipping Weight:27lbs
(1) Vital Industry VH5-10 Chain Block, VH Type, 3.3 x 8.5 ft (1 tx 2.5 m)
PRODUCT DESCRIPTION
Vital is a Japanese brand which is globally recognised for their high quality products. Their range of chain blocks are suited for many applications in the mining, construction, industrial and automotive industry. They have proven to be an economical method to lift heavy loads with ease. The capacities vary from 0.5 tonne to 20 tonne and all chain blocks can be supplied with overload protection for added security of use. Lifting capacity 1 ton. It is a ball bearing type chain hoist. Made from Japan, beautiful shape, compact size, light weight. Resistant to high tensile strength and has a long service life. Single chain type with a standard lifting distance of 2.5 meters. The lifting force is 33 kilograms.
a - 149mm
b - 158mm
c - 324mm
g - 30mm
Applications:
-Uprooting trees
-Installing under-water pump
-Laying conduits and pipelines.
-And much more.
TECHNICAL SPECIFICATIONS
Manufacturer: Vital Industrial
Part number: VH5-10
Capacity (t): 1
Model Number: VH5-10
Stand Lift (m): 2.5
Item Weight: 25.35lbs
Head Room (mm): 345
Pull to Lift (kgf): 33
Load (N): 324
Test Load (t): 1.5
Product Dimensions: 15 x 16 x 18 cm
Additional Information
Shipping Weight:27lbs
| SKU | TT-VH5-10 |
|---|---|
| Weight | 27.000000 |
| Manufacturer | VITAL INDUSTRY |
