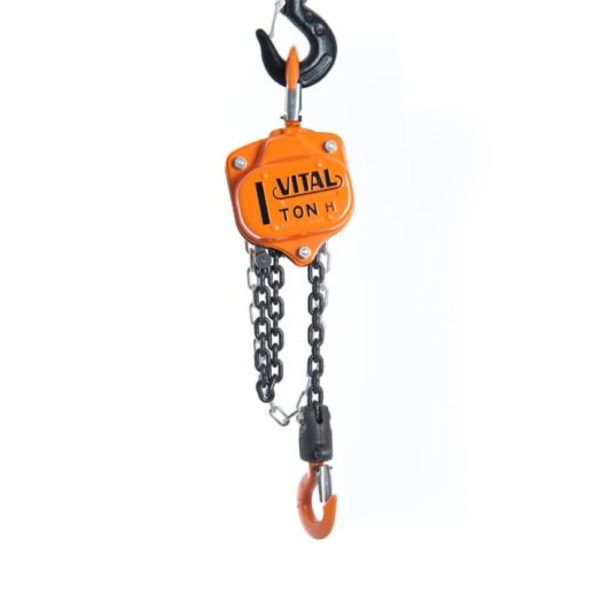

CHAIN BLOCK 5 TON X 6M
In stock
Only 20 left
SKU
TT-VH5-50-6
TTD $8,449.00
PRODUCT FEATURES
With its superior power, it greatly improves your work efficiency.
Rated Load: 5 tons
Standard Lifting Height: 9.8 ft (3.0 m)
Weight: 88.2 lbs (41.0 kg).
Load chain wire diameter x number of hooks: 0.4 x 0.08 in (9.0 x 2 mm)
Working Load (t): 7.5
Bottom hook safety hardware included.
Uses a strong baked chain and top and bottom hook with thrust bearing
With its superior power, it greatly improves your work efficiency.
Rated Load: 5 tons
Standard Lifting Height: 9.8 ft (3.0 m)
Weight: 88.2 lbs (41.0 kg).
Load chain wire diameter x number of hooks: 0.4 x 0.08 in (9.0 x 2 mm)
Working Load (t): 7.5
Bottom hook safety hardware included.
Uses a strong baked chain and top and bottom hook with thrust bearing
Attachments (1)
INCLUDES
(1) Vital Industries VH5-50 Chain Block, VH Type, 16.4 x 9.8 ft (5t x 6.0 m)
PRODUCT DESCRIPTION
Vital is a Japanese brand which is globally recognised for their high quality products. Their range of chain blocks are suited for many applications in the mining, construction, industrial and automotive industry. They have proven to be an economical method to lift heavy loads with ease. The capacities vary from 0.5 tonne to 20 tonne and all chain blocks can be supplied with overload protection for added security of use. Lifting capacity 1 ton.

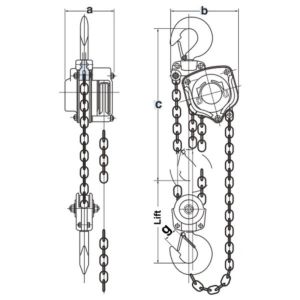

a- 181mm
b- 263mm
c- 635mm
g- 47mm
Applications:
-Uprooting trees
-Installing under-water pump
-Laying conduits and pipelines.
-And much more.
TECHNICAL SPECIFICATIONS
Manufacturer: Vital Industry
Part number: VH5-50-6
Capacity (t): 5
Model Number: VH5-50-6
Stand Lift (m): 6.0
Item Weight: 90.39lbs
Head Room (mm): 635
Pull to Lift (kgf): 382
Load (N): 382
Test Load (t): 6.3
Item Weight: 94lbs
Product Dimensions: 18 x 26 x 30 cm
Additional Information
Shipping Weight: 92lbs
(1) Vital Industries VH5-50 Chain Block, VH Type, 16.4 x 9.8 ft (5t x 6.0 m)
PRODUCT DESCRIPTION
Vital is a Japanese brand which is globally recognised for their high quality products. Their range of chain blocks are suited for many applications in the mining, construction, industrial and automotive industry. They have proven to be an economical method to lift heavy loads with ease. The capacities vary from 0.5 tonne to 20 tonne and all chain blocks can be supplied with overload protection for added security of use. Lifting capacity 1 ton.
a- 181mm
b- 263mm
c- 635mm
g- 47mm
Applications:
-Uprooting trees
-Installing under-water pump
-Laying conduits and pipelines.
-And much more.
TECHNICAL SPECIFICATIONS
Manufacturer: Vital Industry
Part number: VH5-50-6
Capacity (t): 5
Model Number: VH5-50-6
Stand Lift (m): 6.0
Item Weight: 90.39lbs
Head Room (mm): 635
Pull to Lift (kgf): 382
Load (N): 382
Test Load (t): 6.3
Item Weight: 94lbs
Product Dimensions: 18 x 26 x 30 cm
Additional Information
Shipping Weight: 92lbs
| SKU | TT-VH5-50-6 |
|---|---|
| Weight | 92.000000 |
| Manufacturer | VITAL INDUSTRY |
