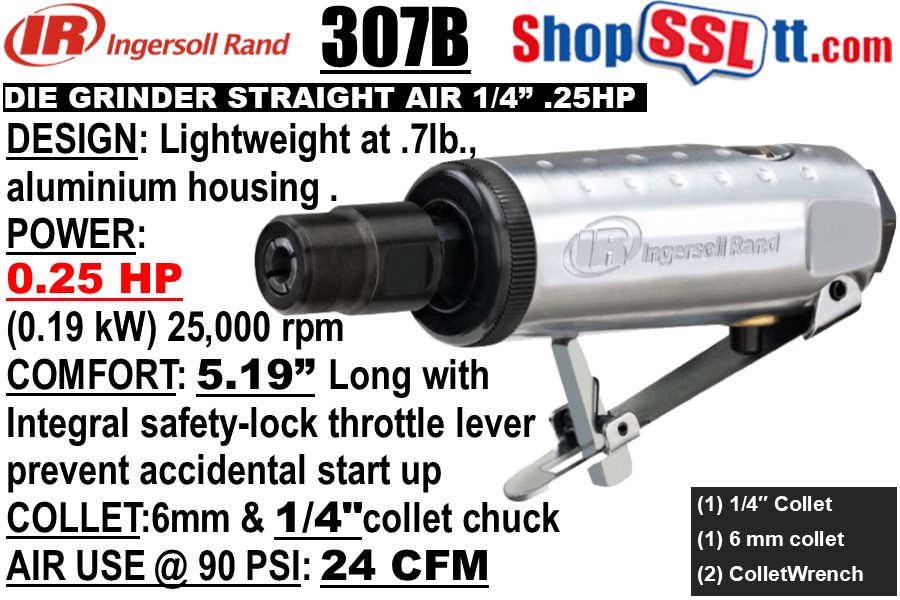

DIE GRINDER STRAIGHT AIR MINI 1/4".25HP 28000RM 24/6CFM@90PSI

INCLUDES

(1) 307B Air Die Grinder
(1) 1/4″ Collet
(1) 6 mm collet
(2) Collet Wrenches

PRODUCT FEATURES

Ergonomic and lightweight, making them more comfortable to use for longer stretches of time
Performance: Powerful vane motor delivers 0.25 HP, 0.19 kW and 28,000 RPM free speed
Composite housing is lightweight at only 1 lb and contoured for increased comfort and protection from cold temperature
Slim design allows access into tight work areas
Durable ball-bearing construction improves balance, reduces vibration, and ensures a long tool life

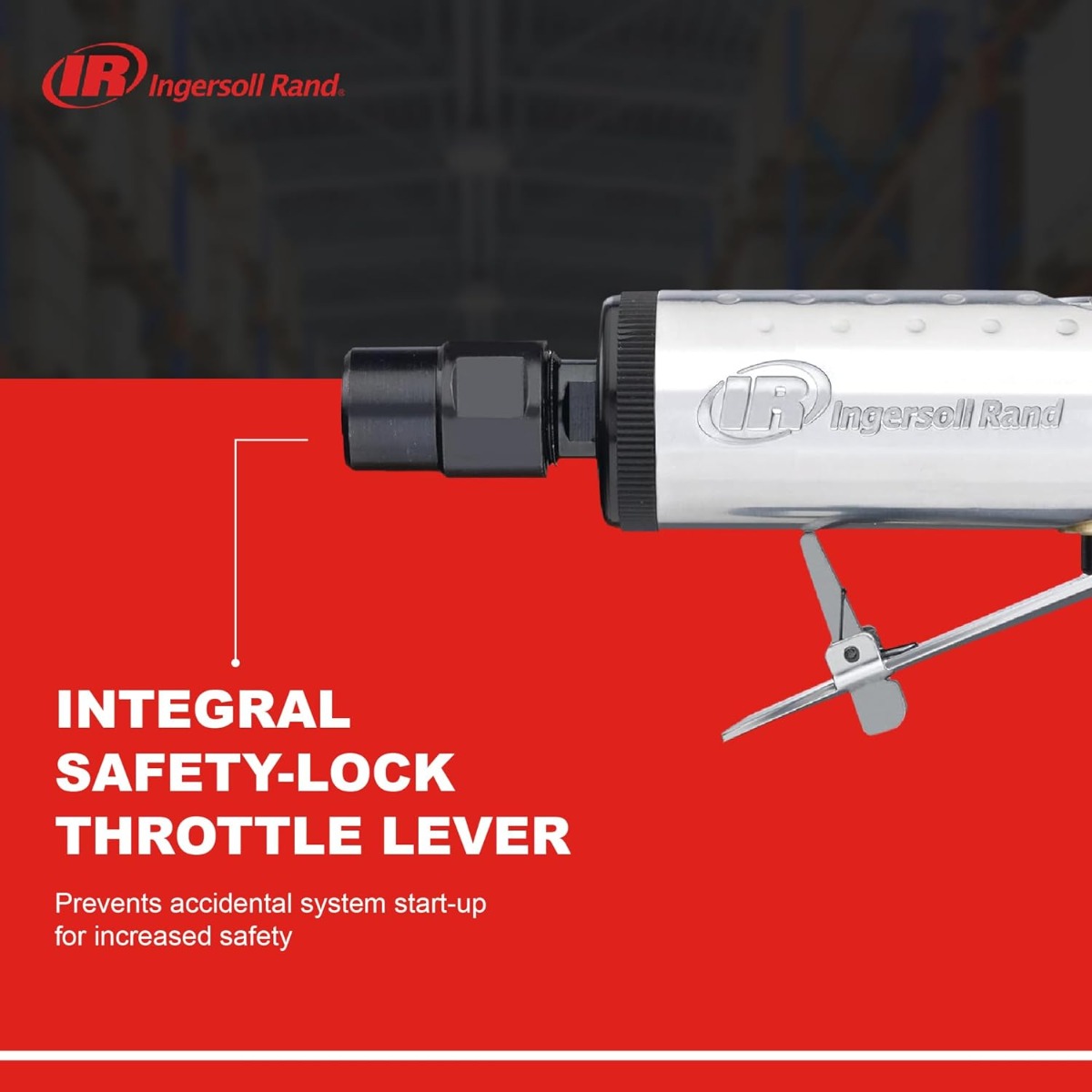

Integral safety-lock throttle lever prevents accidental start-up if the tool is dropped
Strong aluminum housing
Front exhaust: Helps keep work surface clean
Overall Length 5.19"
This Ingersoll Rand air tool is for grinding, breaking sharp edges, deburring, porting, and polishing.
Includes 1/4" and 6mm collets and two wrenches.
Average Air Consumption 7 cfm.
Average Air Consumption @ Load 28 cfm.
Built-in lubricating wick increases angle gear life.

PRODUCT DESCRIPTION

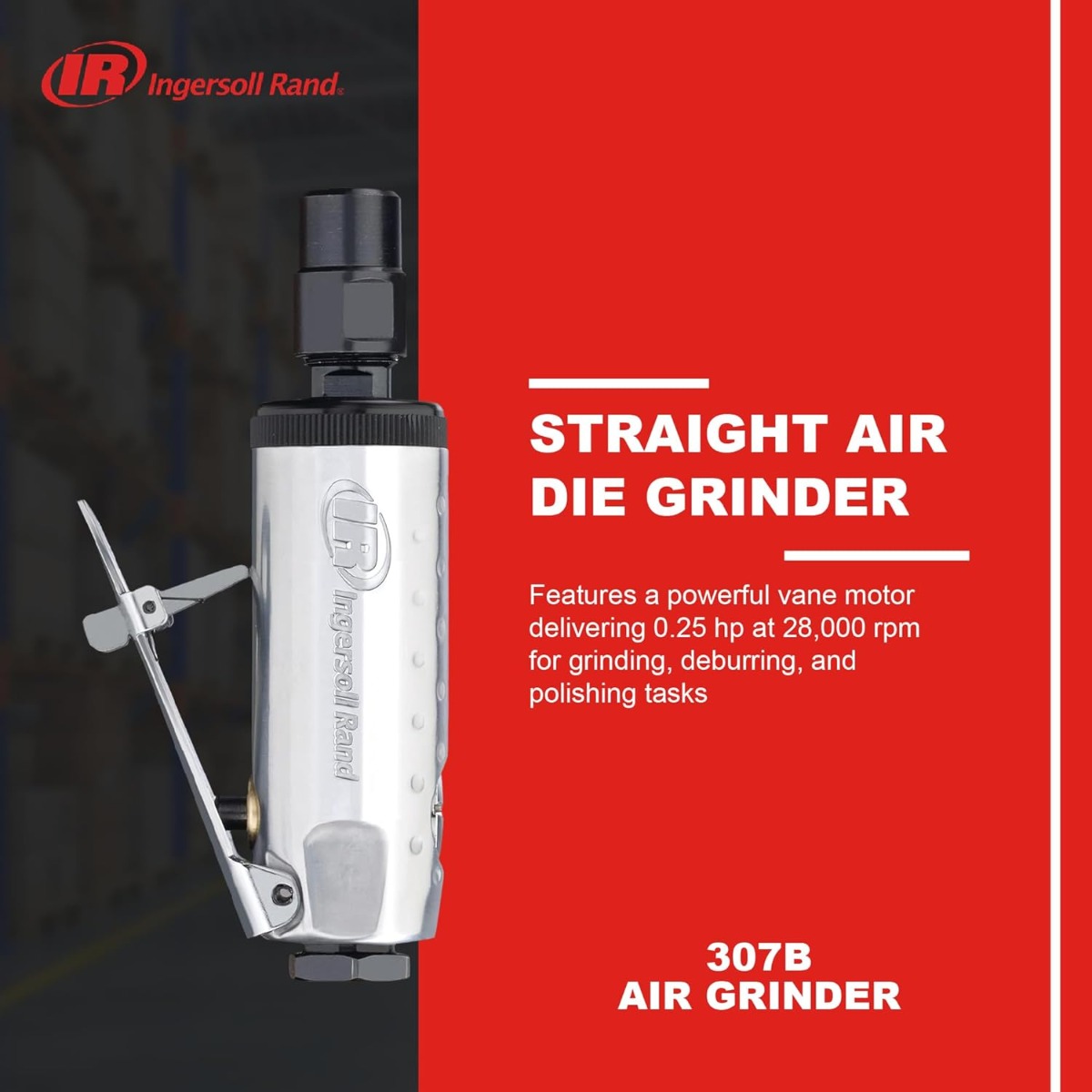

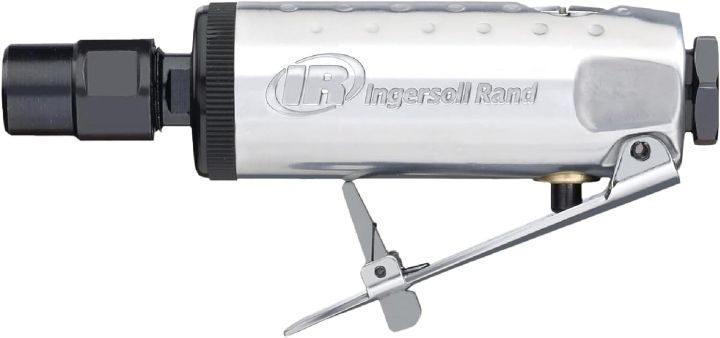

Ingersoll Rand's 307B general purpose Air Die Grinder is durable, reliable, and cost-effective. Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing. Their compact design offers exceptional maneuverability, versatility, and accessibility for difficult-to-reach spots. Also available in the 307BK kit which includes 10 mounted grinding tips and a blow-molded case.
307B has a 0.25 hp motor that delivers a free speed of 28,000 rpm.
Great for grinding, breaking sharp edges, deburring, porting, and polishing

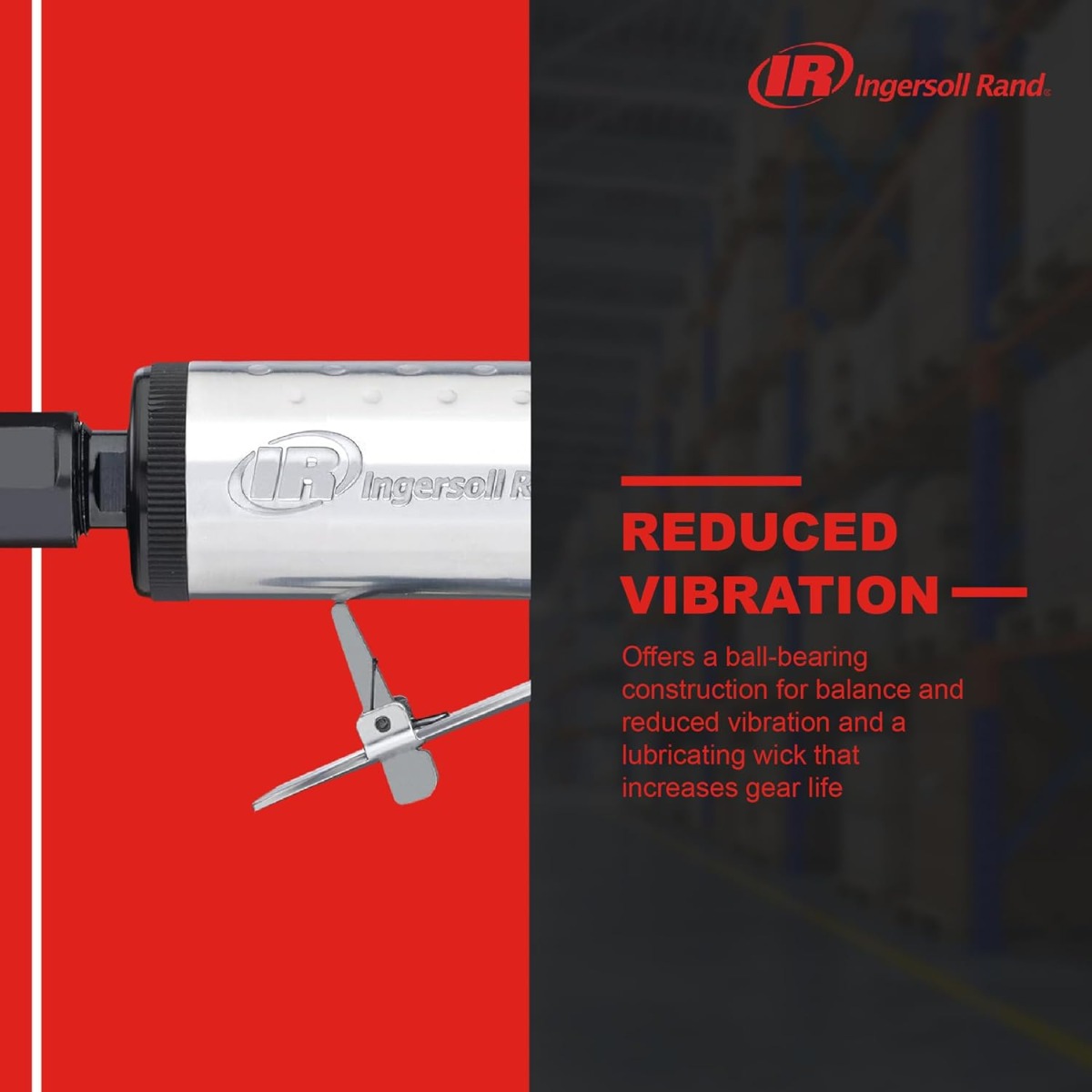

The 307B's strong aluminum housing withstands tough operating conditions, and its durable ball-bearing construction improves balance, reduces vibration, and ensures a longer life. The small, lightweight design provides easy operation, and greater access to tight spots, while an integral safety-lock throttle lever prevents accidental start-up. It also features a front exhaust to help you keep work surfaces clean.

APPLICATIONS

MRO and Rail
Heavy machinery
Metal fabrication
Construction
Oil and gas
Aerospace
Shipbuilding
Tool and die

TECHNICAL SPECIFICATIONS

Model: 307B
Handle Style: Straight
Grinder Type: Die Grinder
Actuation/Throttle Type/Switch Type: Lever
Bearing Type: Ball Bearing
Lock Mechanism: Lever lock in off position
Lubrication: 10G
Standard Collet Included; Yes
Inlet Connection Size: 1/4 Inch Threaded
Rated Power (hp): 0.25
Rated Power (kW): 0.19
Max Free Speed (rpm): 28000
Output: 1/4 in. and 6 mm
Length (in): 5.19
Length (mm): 174
Side to Center Distance 16.51 mm
Air consumption (no load): 6 CFM
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (L/min): 680
Air Pressure: 90 PSI
Sound Power: 94 dB
Sound Pressure: 83 dB
Vibration: 4.5 Meter per Square Second
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Exhaust Type: Front
Minimum Hose Size: 3/8 Inch
Tool Weight: 0.7 lbs
Shipping Weight: 3 lbs
