DRILL BREAKER JACK HAMMER 1-1/8"HEX 70LBS 54FTLBS+CHISELS+CART

PRODUCT VIDEO

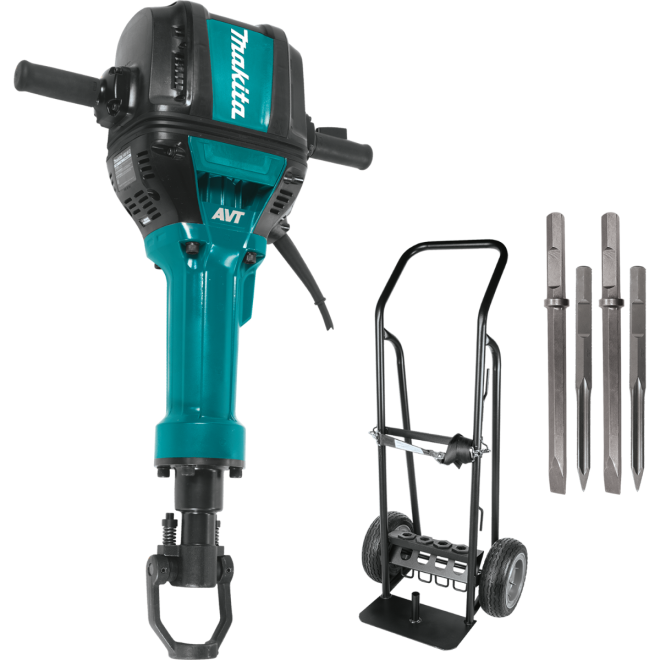

INCLUDES

(1) 70 lb. Advanced AVT Breaker Hammer, accepts 1-1/8" Hex bits (HM1812)
(1) Hex Wrench (783203-8)
(2) 1" x 20-1/2" Flat Chisel, 1-1/8" Hex (D-61575)
(2) 16" Self Sharpening Bull Point, 1-1/8" Hex (D-61569)
(1) Premium Hammer Cart (T-03224)

PRODUCT FEATURES

HM1812
Efficient 15 AMP motor with improved hammer mechanism delivers 53.9 ft.lbs./72.8 joules of impact energy to handle the most demanding applications
Advanced AVT is a synchronized, three-component system that more effectively reduces vibration in varying conditions resulting in a low 6.5m/s2
Advanced AVT provides a mechanical counterbalance system which greatly reduces vibration and directs more impact energy to the work surface for increased user comfort and greater productivity
Advanced AVT provides a vibration absorbing housing which moves independently of the motor and hammer mechanism effectively isolating more vibration away from the user
Advanced AVT provides rubberized fixed handles which dampen vibration for increased comfort and precision
Soft start is designed to suppress start-up reaction for greater accuracy on start up
"Soft no-load" function automatically reduces the speed of the motor when not in use which helps increase tool life and performance
L.E.D. power light indicates switch failure or cord damage
L.E.D. service light notifies the user approximately 8 hours before brushes need to be replaced
Automatic brush cut-off protects commutator from damage for longer tool life
Cylindrical bit holder allows for the bit holder assembly to be re-positioned should the original bolts and bolt holes become damaged
Recessed lifting handles provide more convenience
Breaker includes a 16.4 ft. power cord and integrated cord guide which positions the power cord away from working area
Premium hammer cart transports breaker hammer and bits for increased convenience

PRODUCT DESCRIPTION

HM1812
The new 70 lb. AVT Breaker Hammer is engineered to hit like an air hammer, but with less noise and vibration. It has a powerful 15 AMP motor that delivers a full 53.9 ft.lbs. (73.8 Joules) of impact energy, so contractors get hard-hitting performance. Users also benefit from less noise and lower vibration than an air hammer, and zero hassle with an air hose and compressor. The HM1812 features the latest Advanced AVT Technology, a synchronized three-component system that more effectively reduces vibration. The internal mechanical counterbalance system, vibration-absorbing housing, and fixed movement handles are engineered for significantly less vibration during concrete breaking applications. Model HM1812X3 is a kit and also includes a Premium Hammer Cart, as well as two 1-1/8" x 20-1/2" Flat Chisels (1-1/8" Hex) and two 16" Self-Sharpening Bull Point bits (1-1/8" Hex).

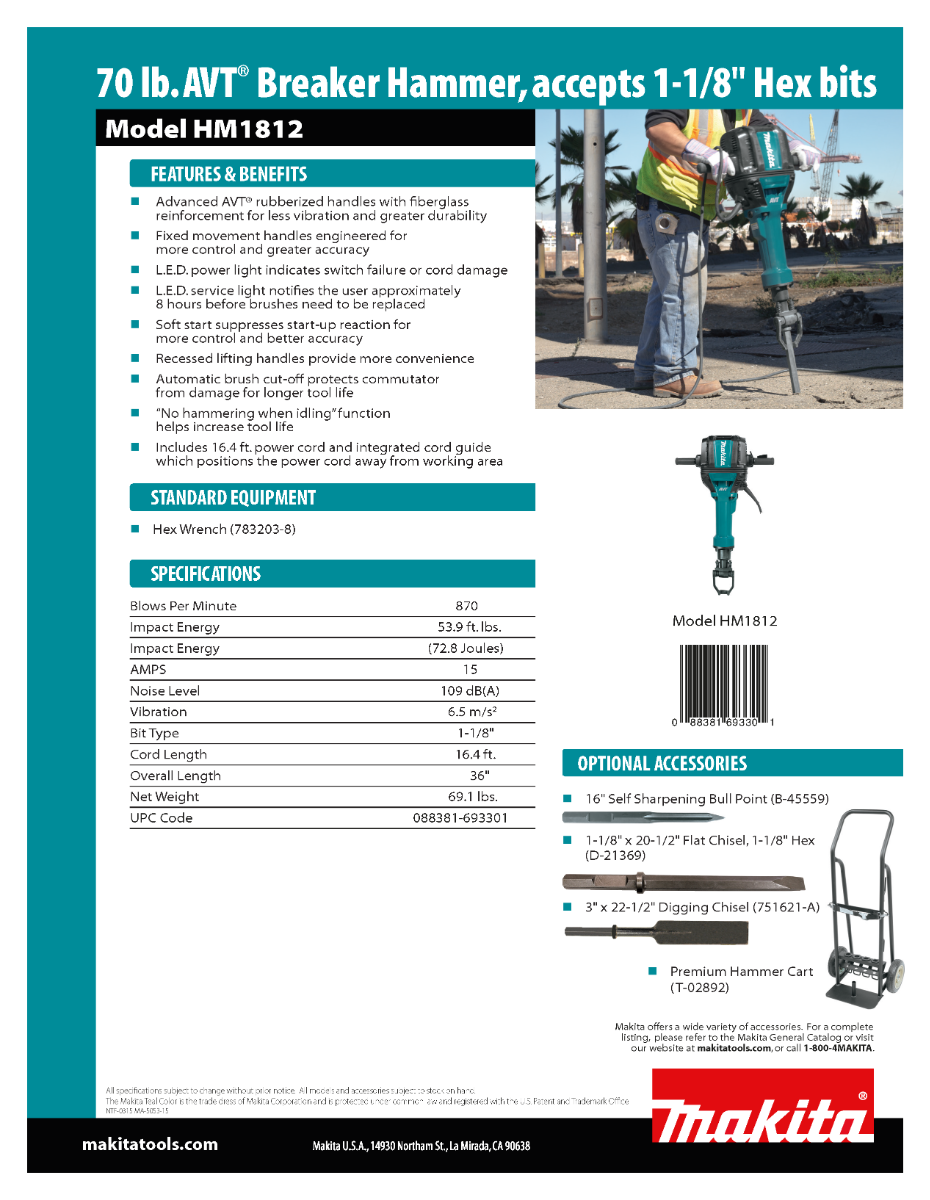

TECHNICAL SPECIFICATIONS

HM1812
AMPS : 15
Blows Per Minute : 870 BPM
Impact Energy (ft.lbs.) : 53.9
Impact Energy (Joules) : 72.8 J
Vibration Control : Yes
Vibration (m/s SQUARED) : 6.5
Noise Level : 106 dB
Cord Length (ft) : 16.4'
Overall Length : 33-1/4"
Net Weight : 69.1 lbs.
Bit Type : 1-1/8" Hex
Power Type : Corded
Breaker/Demo class : 70
Shipping Weight : 140 lbs.

TOTAL PACKAGE SHIPPING WEIGHT : 175 lbs.
