DRILL ROT 1"SDS+18V 5AH VS 3M 1.7#+14PC SDS+ BIT/CHISEL SET

Brand

MAKITA

Be the first to review this product

In stock

Only 14 left

SKU

MAK-DHR242STX2

TTD $2,999.00

DURABILITY : Powerful BL motor delivers 0-950 RPM, 0-4,700 BPM and 1.7 ft.lbs. of impact energy
DUST MANAGEMENT : Compatible with built-on HEPA Dust Extraction Vacuum (DX01, sold separately) for improved mobility
VERSATILITY : Torque Limiting Clutch prevents gear damage by automatically disengaging gears if the bit binds
POWER : 3-Mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only"
APPLICATIONS : For concrete and masonry demolition applications
BIT SET : High quality steel construction 14pc SDSPLUS drill bit & chisel set for various applications + SDS+ to 1/2"chuck & adapter.
INCLUDES : 18V LXT Lithium-Ion 5.0Ah battery, charger, side handle, depth gauge and 14 pc SDSPLUS drill bit & chisel set.

Color

PRODUCT VIDEO

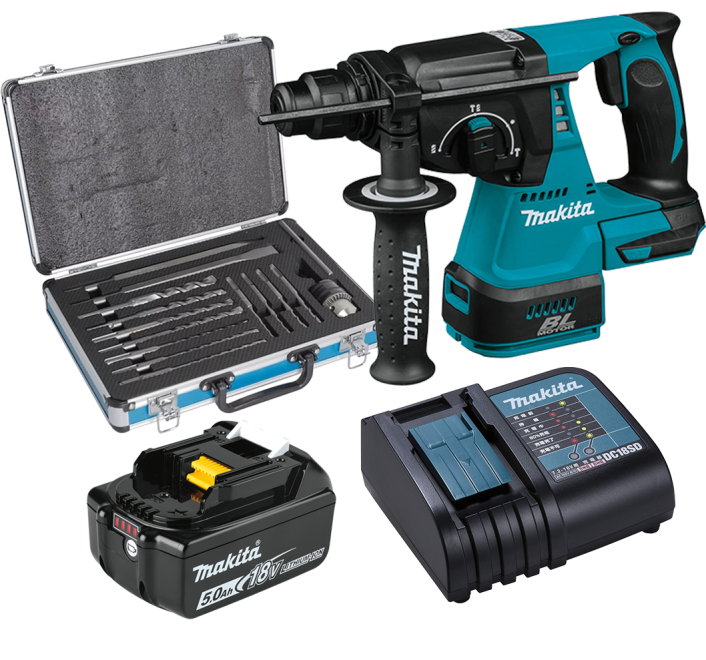

INCLUDES

(1) 18V LXT Brushless 1" Rotary Hammer (DHR242Z)
(1) 18V LXT Lithium-Ion 5.0Ah Battery (BL1850B)
(1) 18V LXT® Lithium-Ion Standard Charger (DC18SD)
(1) Side Handle (158057-6)
(1) Depth Gauge (324219-0)
(1) 14pc SDS+ Drill bit & Chisel set with Drill Chuck + Adapter With Key for SDSPLUS to 1/2" Straight Drive (D-71205)

PRODUCT FEATURES

Efficient BL Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
The BL Brushless Motor eliminates carbon brushes, enabling the BL Motor to run cooler and more efficiently for longer life
Compatible with built-on HEPA Dust Extraction Vacuum Attachment part no. DX01 (sold separately) for improved dust extraction mobility
Compact and ergonomic design at only 12-7/8" long
Weighs only 7.2 lbs. with battery for reduced operator fatigue
Variable speed trigger enables user to match the speed to application for greater versatility
Multiple Chisel Positions has 40 different positions to align tool more comfortably with the application
Job site tested shock absorbent handle protect the battery housing for extra durability

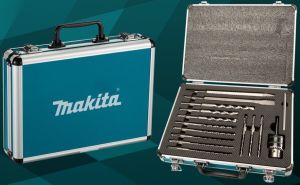

D-71205 14 pc SDSPLUS drill bit & chisel set includes:

(1) Drill bit 5/32" X 1-5/8" WORK X 4-1/2" SDSPLUS HD STEEL
(1) Drill bit 3/16" X 1-5/8"WORKLENGTH X 4-1/2" SDSPLUS HD STEEL
(1) Drill bit 3/16" X 3-5/8"WORKLENGTH X 6-1/4" SDSPLUS HD STEEL
(1) Drill bit 7/32" X 3-5/8" X 6-1/4" SDSPLUS HD STEEL
(1) Drill bit 1/4" X 1-5/8" X 4-1/2" SDSPLUS HD STEEL
(1) Drill bit 1/4" X 3-5/8" X 6-1/4" SDSPLUS HD STEEL
(1) Drill bit 5/16" X 3-5/8" X 6-1/4" SDSPLUS HD STEEL
(1) Drill bit 3/8" X 3-5/8" X 6-1/4" SDSPLUS HD STEEL
(1) Drill bit 1/2" X 3-3/8" X 6-1/4" SDSPLUS HD STEEL
(1) Drill bit 9/16" X 3-3/8" X 6-1/4" SDSPLUS HD STEEL
(1) Drill bit 5/8" X 4-1/2" X 8" SDSPLUS HD STEEL
(1) Bull Point Chisel 10" SDSPLUS HD STEEL
(1) Flat Chisel 3/4" Wide X 10"LENGTH SDSPLUS HD STEEL
(1) Drill Chuck + Adapter With Key for SDSPLUS to 1/2" Straight Drive
(1) Carry Case
SDSPLUS to 1/2" Straight Drive Drill chuck and adaptor Allows the use of a standard Drill Chuck on SDS-PLUS Rotary Hammers making it compatible with round shank Drill Bits
Use with rotary hammers that accept SDS-PLUS accessories

PRODUCT VIDEO

PRODUCT DESCRIPTION

DHR242Z

The 18V LXT Lithium-Ion Brushless 1” Rotary Hammer (model DHR242) is a cordless concrete drilling solution powered by an efficient Makita BL Brushless Motor for up to 50% longer run time, increased power and speed, and longer tool life. The DHR242 delivers 0-950 RPM, 4,700 BPM, and 1.7 ft.lbs of impact energy. Ease-of-use and efficiency features include 3-mode operation (rotation only, hammering with rotation and hammer only), a large 2-finger trigger for more convenience and greater comfort, and a depth adjustment guide for increased drilling depth accuracy.

The DHR242 is compatible with the optional HEPA Dust Extraction Vacuum Attachment (model DX01, sold separately) for improved dust extraction without the cord.

D-71205

Makita has a deep line-up of concrete solutions, including premium carbide bits for concrete drilling. Makita SDS-PLUS 2-Cutter Bits feature premium carbide tips for efficient drilling and longer service life, with a special flute design that is engineered for faster dust removal than standard bits. Makita SDS-PLUS 2-Cutter Bits are ideal for a range of general purpose concrete drilling applications.

Makita SDS-PLUS Chuck Adapter makes your SDS-PLUS Rotary Hammer more versatile by allowing the use of a standard drill chuck and striaght drive drill bits. The adapter helps eliminate the number of tools needed on a job site. Constructed of high quality steel to hold up to the most demanding of applications.

1/2" Drill Chuck + Key. The Makita 1/2" Drill Chuck installs quickly and easily for added user convenience. Manufactured from high quality materials for added durability and long life.

TECHNICAL SPECIFICATIONS

DHR242Z

Max. Capacity (concrete drilling) : 1"
Optimum Range (concrete drilling) : 3/16" - 1/2"
Impact Energy (ft.lbs.) : 1.7
Impact Energy (Joules) : 2.4 J
Blows Per Minute (variable speed) : 0 - 4,700 BPM
No Load Speed (variable speed) : 0 - 950 RPM
Vibration Control : No
Vibration (m/s SQ) : 13.5
Battery : 18V LXT Lithium-Ion
Overall Length : 12-7/8"
Net Weight (with battery) : 7.2 lbs.
Bit Type : Accepts SDS-PLUS
Power Type : Cordless

D-71205

Product Type (RHB, DS) : Carbide Drill Bits 2-Cutter
Shank Type : SDS-PLUS
Application (DB, RHB, HS) : Concrete
Package Quantity : 14

Shipping Weight : 24 lbs.
