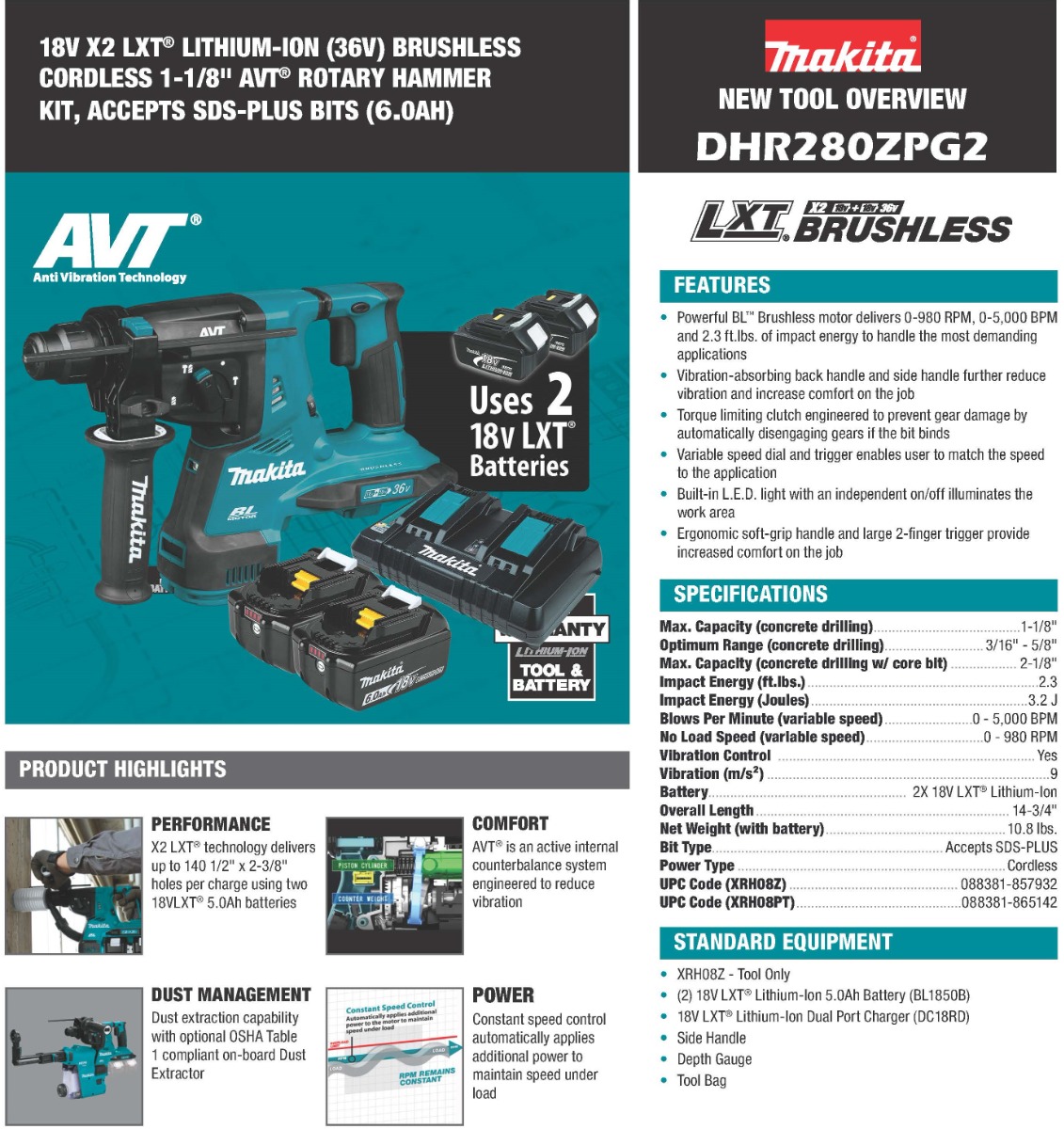

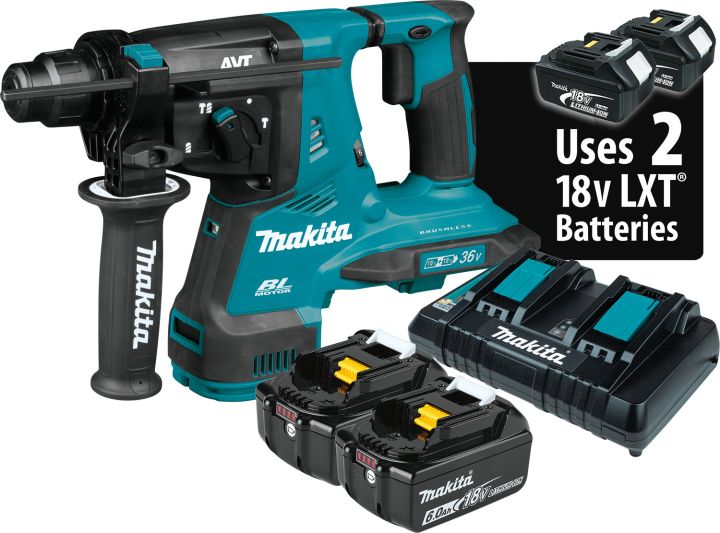

DRILL ROTARY HAMMER 1-1/8"SDS+36V 2X6AH BL 2.3# 980RPM 5000BM AVT

INCLUDES

(1) 18V X2 (36V) LXT® Brushless 1-1/8" AVT® Rotary Hammer (DHR280Z)
(2) 18V LXT® Lithium-Ion 6.0Ah Battery (BL1860B)
(1) 18V LXT® Lithium-Ion Dual Port Charger (DC18RD)
(1) Side Handle
(1) Depth Gauge

PRODUCT FEATURES

X2 LXT technology delivers up to 140 1/2" x 2-3/8" holes per charge using two 18V LXT 5.0Ah batteries
Powerful BL Brushless motor delivers 0-980 RPM, 0-5,000 BPM and 2.3 ft.lbs. of impact energy to handle the most demanding applications
Dust extraction capability with optional OSHA Table 1 compliant On-Board Dust Extractor Attachment
Anti-Vibration Technology (AVT) is an active internal counterbalance system which is engineered to reduce vibration for increased comfort
Vibration-absorbing back handle and side handle further reduce vibration and increase comfort on the job
Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
Electric brake allows the tool to be repositioned faster for maximum productivity
Variable speed dial and trigger enables user to match the speed to the application
Built-in L.E.D. light with an independent on/off illuminates the work area
Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job
3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
Retractable tool hook secures the tool when not in use

PRODUCT DESCRIPTION

The Makita 18V X2 LXT (36V) Brushless 1-1/8” AVT Rotary Hammer is a cordless concrete solution that’s loaded with advanced engineering for maximum efficiency. It’s powered by two 18V LXT batteries and an efficient brushless motor for maximum power, speed and run-time for corded demands, without the cord. X2 LXT technology delivers up to 140 ½” x 2-3/8” holes per charge when using two 18V LXT 5.0Ah batteries.

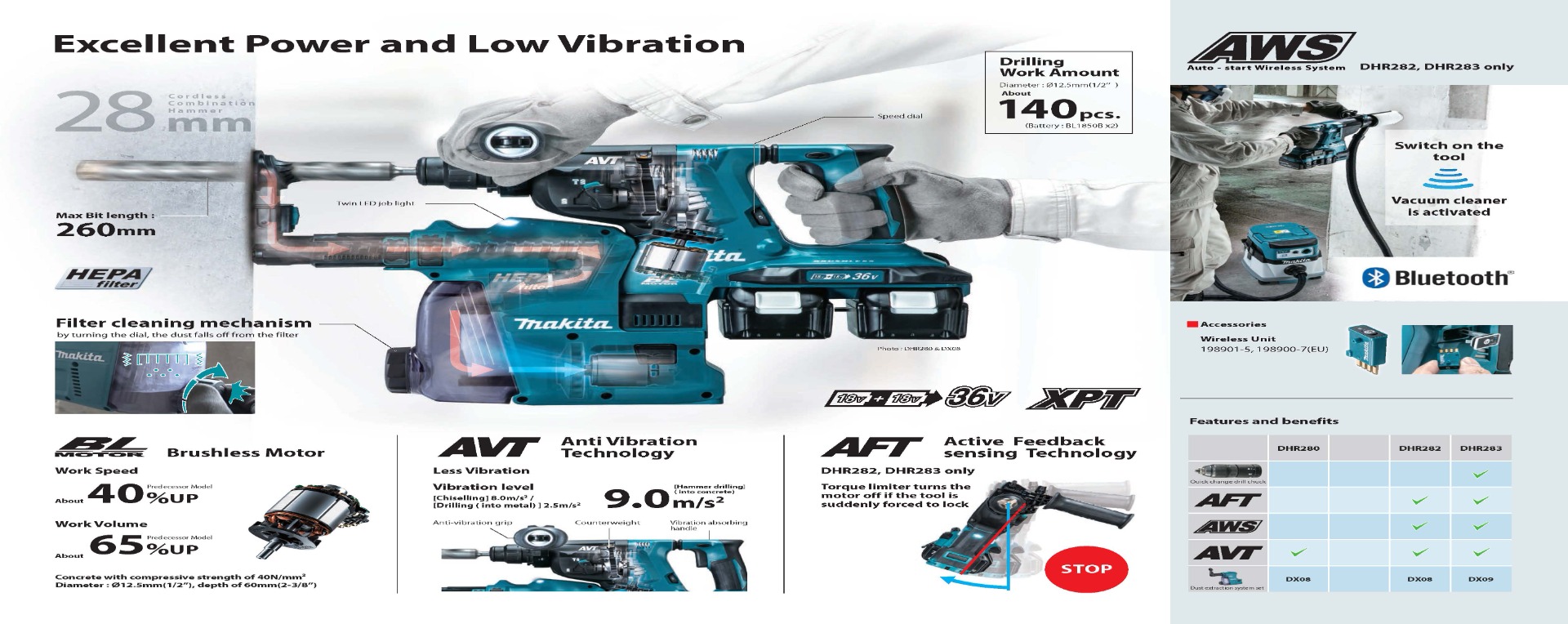

For reduced vibration, it’s equipped with Anti-Vibration Technology (AVT). More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle further reduce vibration. The result is a low vibration rating of only 9m/s², but with no compromise in performance: The efficient brushless motor delivers a full 2.3 ft. lbs. of impact energy, with 250-980 RPM and 0-5,000 BPM.

The torque limiting clutch is engineered to prevent gear damage by automatically disengaging the gears if the bit binds, and constant speed control automatically adds power to the motor to maintain speed under load to complete the most demanding jobs. Additional performance features include a electric brake, variable speed dial, built-in L.E.D. light, and a retractable tool hook. For added durability in harsh job site conditions, Extreme Protection Technology (XPT) is engineered for improved dust and water resistance. It offers dust extraction capability with optional OSHA Table 1 compliant On-Board Dust Extractor Attachment (sold separately).

It is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. It accepts SDS-PLUS bits.

TECHNICAL SPECIFICATIONS

Max. Capacity (concrete drilling) : 1-1/8"
Optimum Range (concrete drilling) : 3/16" - 5/8"
Max. Capacity (concrete drilling w/ core bit) : 2-1/8"
Impact Energy (ft.lbs.) : 2.3
Impact Energy (Joules) : 3.2 J
Blows Per Minute (variable speed) : 0 - 5,000 BPM
No Load Speed (variable speed) : 0 - 980 RPM
Vibration Control : Yes
Vibration (m/s²) : 9
Battery : 2X 18V LXT® Lithium-Ion
Overall Length : 14-3/4"
Net Weight (with battery) : 10.8 lbs.
Bit Type : Accepts SDS-PLUS
Power Type : Cordless
Active Feedback-sensing Technology (AFT®) : Yes
Bind-Up Control : No
Shipping Weight : 20 lbs.
