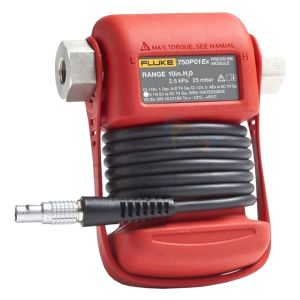

Fluke Model # 750P01 Pressure Module, 0 to 10 INCH H2O (0 to 25 MBAR),(0 to 2.5 KPA)

Brand

FLUKE

Be the first to review this product

In stock

Only 10 left

SKU

FLUKE-750P01

TTD $17,208.00

Differential pressure module with a range from 0 to 10 in H2O (0 to 25 mBar) and a 3X Burst Rating. This module features a reference uncertainty of ±0.1%.

Color

Fluke 750P Series Pressure Modules are easy to use. To measure pressure, connect the pressure module to a pressure source or hand pump and then connect the pressure module cable to the calibrator. Apply pressure from the pressure source and it is displayed digitally on the calibrator. At the touch of a button, the pressure may be displayed in up to 11 different engineering units. When used with the 750 Series Documenting Process Calibrators, pressure readings can be date/time stamped and stored electronically for later retrieval. This saves time, eliminates errors, and supports F85compliance with quality standards and regulations.

Features

Parameter/Range:0 to 10 in H2O (0 to 25 mBar)
Burst Rating6: 3x
Hi Side Media2: Dry Air
Lo Side Media2: Dry Air
Reference Uncertainty4: ± 0.1%
Total Uncertainty 1-year (15-35°C): ± 0.2%
Total Uncertainty 1-year1: ± 0.3%
Total Uncertainty 6-month (15-35°C): ± 0.15%
Total Uncertainty 6-month1: ± 0.25%
