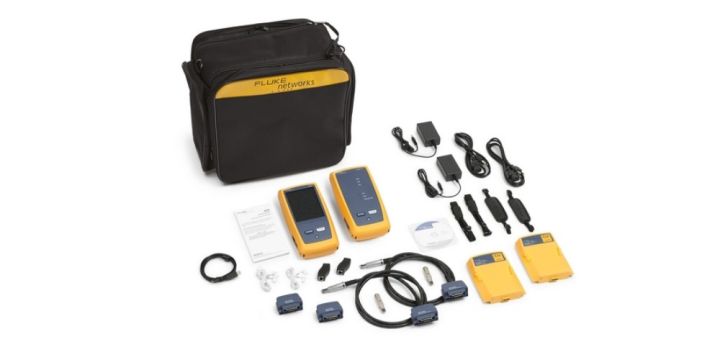

Fluke Networks Model # DSX2-5000 INT, DSX CableAnalyzer™ Series Copper Cable Certifier
Brand
FLUKE
In stock
Only 10 left
SKU
FLUKE-DSX2-5000-INT
TTD $107,709.75
Features
Speed of autotest: DSX-5000: Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds. Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Display: 5.7 in LCD display with a projected capacitance touchscreen
Case: Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Integrated WIFi meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Cat 6A/Class EA test time for DSX-5000 cable analyzer: 10 seconds
Operating temperature:32F to 113F (0C to 45C)
Storage temperature: -14F to +140F (-10C to +60C)
EMC: EN 61326-1
The DSX Cable Analyzer Series family copper cable certifier is based on two modules: the DSX-5000 and DSX-8000. The DSX-5000 certifies twisted pair Cat 5e, 6, 6A and Class FA cabling with limits up to 1000 MHz
- Versiv modular design supports copper ce rtification, fiber optic loss, OTDR testing and fiber end-face inspection
- Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
- ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
- Taptive user interface simplifies set-up, and eliminates errors
- Analyze test results and create professional test reports using LinkWare management software
- Graphically displays the source of failures including crostalk, return loss and shield faults for faster troubleshooting
- Intertek Verified to TIA Level 2G - the most stringent accuracy requirement
- Copper cable certifiers endorsed by cabling vendors worldwide
- Built in Alien Crosstalk testing capabilityÔ Compatible with Linkware Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC Cable Test Ma nagement Software.
- Versiv modular design supports copper ce rtification, fiber optic loss, OTDR testing and fiber end-face inspection
- Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
- ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
- Taptive user interface simplifies set-up, and eliminates errors
- Analyze test results and create professional test reports using LinkWare management software
- Graphically displays the source of failures including crostalk, return loss and shield faults for faster troubleshooting
- Intertek Verified to TIA Level 2G - the most stringent accuracy requirement
- Copper cable certifiers endorsed by cabling vendors worldwide
- Built in Alien Crosstalk testing capabilityÔ Compatible with Linkware Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC Cable Test Ma nagement Software.
| SKU | FLUKE-DSX2-5000-INT |
|---|---|
| Weight | 1.000000 |
| Manufacturer | FLUKE |
