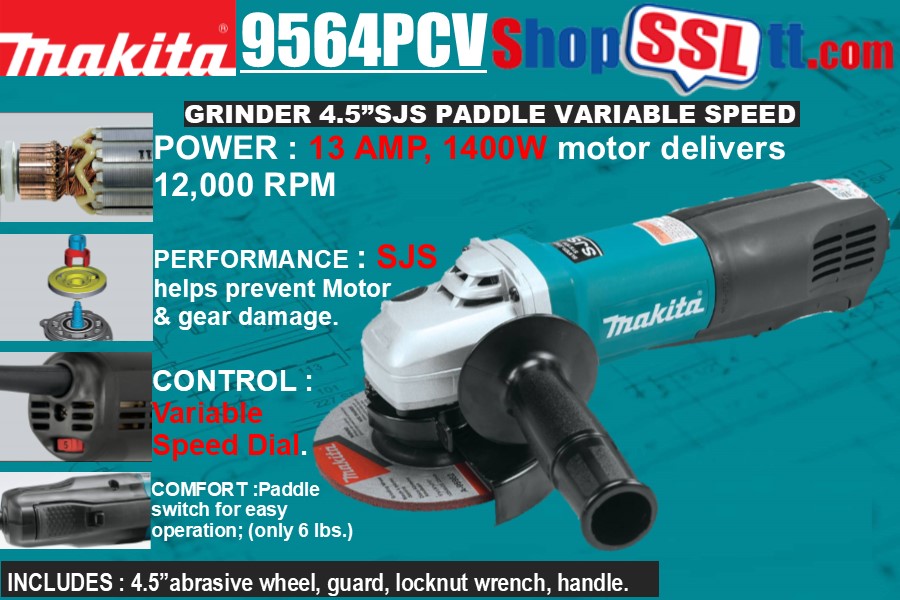

GRINDER 4.5"SJS PADDLE 13A VARIABLE SPEED DIAL

PRODUCT FEATURES

Powerful 13.0 AMP motor delivers more output and 12;000 RPM for the most demanding applications
SJS technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
Constant speed control automatically applies additional power to the motor to maintain speed under load
Soft start suppresses start-up reaction for smooth start-ups and longer gear life
Electronic current limiter helps protect the motor from overload
Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
Large paddle switch with lock-off for comfortable operation
Tool-less wheel guard adjustment for easy adjustment
Two position adjustable side handle for operator covenience
Compact design at only 12-1/8" long and weighs only 6 lbs.

PRODUCT DESCRIPTION

Makita 4-1/2" SJS Angle Grinder combines 13 AMP power with comfort and motor-protection features for longer-lasting industrial performance. The 9564PCv is engineered with Makita innovative SJS mechanical clutch system to protect the gears for longer tool life.
13 AMP Power with SJS to Protect Gears
The 9564PCV is powered by a 13 AMP motor that delivers 12;000 RPM; with soft start for smooth start-ups. Labyrinth construction protects the motor with a complex set of channels; prohibiting dust and contamination. In addition; the protective zig-zag varnish seals the motor and bearings from dust and debris by creating a barrier under rotation. The 9564PCV is engineered with SJS mechanical clutch system; an innovation from Makita that protects the gears by automatically disengaging the motor should the grinding wheel accidentally catch or bind.
Comfort and Ergonomics
The 9564PCV weighs just 5.3 lbs. and is built with comfort and ergonomic features for extended use. In addition; the side handle can be easily installed on either side of the tool as well as the top; and the ôtool-lessö wheel guard adjustment provides easy clamping.
Versatile Design for a Range of Applications
The 9564PCV is a versatile and powerful grinder engineered for demanding applications including cutting; ferrous metal; paint and rust removal; shipyard maintenance; heavy machinery; metal polishing; general steel grinding; auto repair work; cutting brick and masonry; and restoration work. The grinder is built for welders; fabricators; plumbers; masons; electricians; automotive technicians; stone and tile workers; HVAC; and general contractors seeking a best-in-class industrial quality angle grinder.

INCLUDES

(1) 4-1/2" Grinding Wheel
(1) 4-1/2" Tool-less Wheel Guard
(1) Lock Nut
(1) Lock Nut Wrench
(1) Inner Flange
(1) Side Handle

TECHNICAL SPECIFICATIONS

Wheel Diameter : 4-1/2"
AMPS : 13
WATTS : 1400
No Load Speed : 2,800 - 12,000 RPM
Spindle Thread : 5/8" - 11 UNC
Lock-On : No
Lock-Off : Yes
Switch Type : Body grip/paddle
Overall Length : 12-1/8"
Variable speed control dial : Yes
Power Type : Corded
Net Weight : 6 lbs.
Shipping Weight : 10 bs.
