HAMMER AIR+5 CHISEL 3.5"STROKE 2000BPM 14CFM@90 PSI .401"SHANK 1/4"NPTF

Brand

INGERSOLL RAND

Be the first to review this product

In stock

Only 12 left

SKU

IR-117K

TTD $919.00

DESIGN: 3.5"long piston stroke, this tool is designed for exhaust work, bolt cutting, and front end work
SHANK OPENING: Round
SHANK DIAMETER: .401"
BORE SIZE: 0.69"
BPM: 2000
RETAINER TYPE: Spring
AIR CONSUMPTION @ 90 PSI: 14 CFM

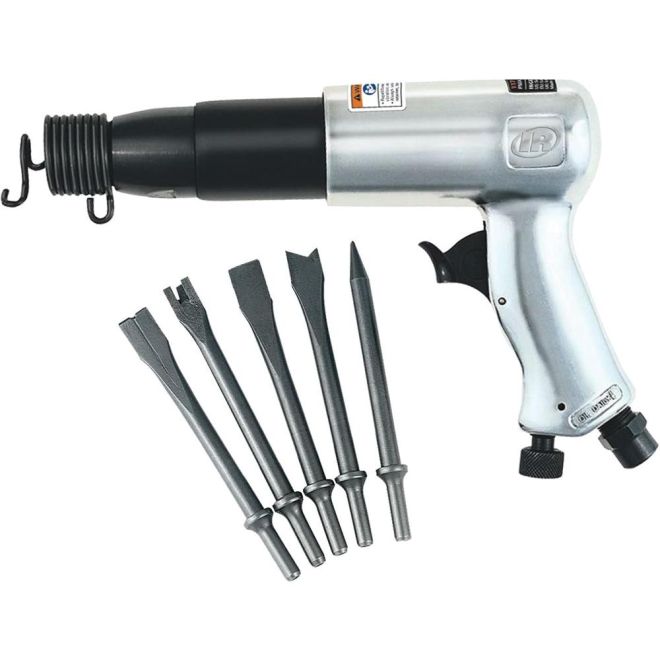

INCLUDES: (5) chisels

Color

INCLUDES

(1) 117 Air Hammer
(1) punch chisel
(1) edging tool
(1) tail pipe cutter
(1) 3/4" wide blade straight chisel
(1) cutting chisel

PRODUCT FEATURES

Built-in power regulator that allows you to completely control the speed and power output of your tool.
Economical air hammer with a longer piston stroke, this tool is designed for exhaust work, bolt cutting, and front-end work.
The trigger control and a built-in power regulator give you full control of the speed and power.
Features a comfortable grip with one-finger trigger control
Longer stroke piston
Alloyed steel barrel and heat-treated piston for longer life
Up to 2,000 blows per minute
5 assorted chisels: punch chisel, edging tool, tail pipe cutter, 3/4" wide blade straight chisel, and cutting chisel
Coil spring retainer for fast and easy chisel changes
Handles a range of cutting applications
Includes (5) chisels

PRODUCT DESCRIPTION

An economical air hammer with a long piston stroke, this tool is designed for exhaust work, bolt cutting, and front end work. The trigger control and a built in air power regulator give you full control of the speed and power. Longer stroke piston Alloyed steel barrel and heat-treated piston for longer life. Up to 2,000 blows per minute Specifications: Blows per minute: 2,000 Stroke length: 3-1/2 inch (89 mm) Shank: .401, Weight: 4. 1 lbs. (1. 86 kg) Length: 9. 9 (251) Average air consumption: 3 cfm, load 14 cfm Sound (pressure/power): 103. 5/116. 5 dBA Air inlet: 1/4 inch Chisel set includes edging tool, tail pipe cutter, straight cutter, cutting chisel and a punch

TECHNICAL SPECIFICATIONS

Shank Opening: Round
Chisel Shank Diameter: .401"
Retainer Type: Spring
Blows Per Minute: 2000
Bore Diameter: 0.69"
Stroke Length: 3.5"
Length: 9.9"
NPTF Size: 1/4 in
Pressure: 90 psi
Average Air Consumption: 3cfm
Air Consumption @ Load: 14 cfm
Air Inlet: 1/4" NPTF
Min. Hose Size: 3/8"
Sound Pressure: 103.5 dBA
Sound Power: 116.5 dBA
Tool Weight: 4.1 lbs
Shipping Weight: 7 lbs
