INVERTER ARC 170A 110/220

In stock

Only 102 left

SKU

JTA-KJRRW170CA

TTD $2,899.00

The RAZOR 17O is a dual voltage 110V/220V STICK/TIG inverter-based welding machine produced using the latest IGBT technology. The DC ARC is fitted with a 15 AMP plug. Delivers a smooth and incredibly stable arc allowing easy welding with electrodes producing high quality welds including cast Iron, stainless and low hydrogen. Can run Stick Electrodes up to 5/32″. This quality Inverter comes complete with a carry case and a power adaptor to get your project started.

The T.I.G Lift Arc function is superb and delivers perfect arc ignition every time without any sticking of the tungsten electrode to the work piece. This is an exceptional cost effective machine is suitable for a wide range of applications including, DIY, light industrial, site welding, farming, along with repair and maintenance applications.

The RAZOR 170 gives you the best of both worlds, great portability, with the power to get the job done.

Key Features
Latest IGBT inverter technology
Hot start (improves electrode starting)
ArcForce (boosts current to prevent electrode extinguishing)
Excellent arc stability with all electrodes
LiftArc ignition (prevents tungsten sticking during arc ignition)
Ultra-smooth DC TIG welding current
Thermal overload protection
Generator compatible (recommend 9.0 KVA minimum)
Tolerant to variable power supplies

DOWNLOAD PRODUCT INFO;

Color

Part Number	KUMJRRW170
Power Supply / Phases (V-Ph)	115V/220V - 1 Â±15%
Rated Input Power (KVA)	8.5
ieff (Amps)	20A 115V - 20A 230V
Imax (Amps)	36A 115V - 39A 230V
Rated Output	170A/26.8V ARC - 170A/16.8V TIG
Welding Current Range	10 ~170A
No-Load Voltage (V)	63
Duty Cycle @ 104ÂºF	30%@170Amps ARC - 35%@170Amps TIG
Protection Class	IP21S
Size (inches)	12.32" x 5.11" x 9.8"
Weight (pounds)	10.4
Warranty	1 year on power source

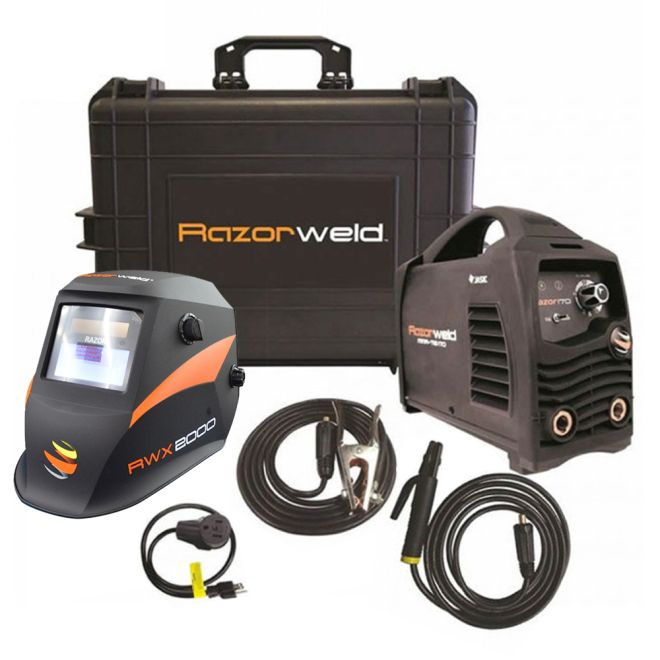

PACKAGE CONTENTS
1 x RAZORWELD ARC 170 DC MMA/TIG Power Source
1 x 12ft Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp
1 x 230/115V Power Adapter
1 x Lightweight Heavy Duty PVC Carry Case
1 x Machine Carry Strap
1 x Instruction Manual

PRODUCT DESCRIPTION

The Razorweld 170 DC STICK/TIG is a professional dual voltage 110V/220V STICK/TIG Inverter capable of producing high-quality welds. The DC ARC welding capability delivers a smooth and incredibly stable arc allowing easy welding with electrodes producing high quality welds including cast Iron, stainless and low hydrogen. The machine is fitted with a 15 AMP plug as standard. The machine also features keyable VRD (Voltage Reduction Device) which is a benefit when wanting to run Low Hydrogen Electrodes. The Razor ARC 170 can run Stick Electrodes up to 5/32″.

The Razor Arc 170 also has the feature of Lift Arc TIG. Lift Arc is a form of arc ignition that is simple, safe and is far superior to scratch start.

Lift Arc ignition allows the arc to be easily started by simply touching the tungsten to the workpiece then lifting it up to start the arc. This prolongs the Tungsten Electrode’s lifespan and helps maintain a clean Tungsten.
The T.I.G Lift Arc function is superb and delivers perfect arc ignition every time without any sticking of the tungsten electrode to the work piece. This is an exceptional cost effective machine is suitable for a wide range of applications including, DIY, light industrial, site welding, farming, along with repair and maintenance applications.

The RAZOR 170 gives you the best of both worlds, great portability, with the power to get the job done.

*Always refer to the recommended polarity setup as stated on the electrode packaging.

Optional Accessories:
WP17V-13 TIG Torch
Razorflow Argon Regulator
