INVERTER MIG ARC VIPER180

In stock

Only 49 left

SKU

JTA-JVMIG180

TTD $4,899.00

PRODUCT FEATURES
Inverter-based portable MIG welding machine with added Stick function.
Dual Voltage 110/220V
11 Pound Wire Spool compatabe
AFFORDABLE PERFORMANCE
IGBT inverter technology
10 Amp Plug
VRD (Stick Mode Only)
MIG/MAG with Gas and Gasless wire function
Soft Start
Adjustable Burn Back
Wire Inch
Stick Function
Hot start (improves electrode starting)
Arc Force (prevents electrode extinguishing)
Excellent arc stability with all electrodes
Internal wire feeder up to .035 in (0.9mm) solid wire
Euro style Mig torch connection
Tolerant to variable power supply
Step-less voltage and wire feed control
100% Spool Gun Ready
Certified to – AS/NZ60974-1

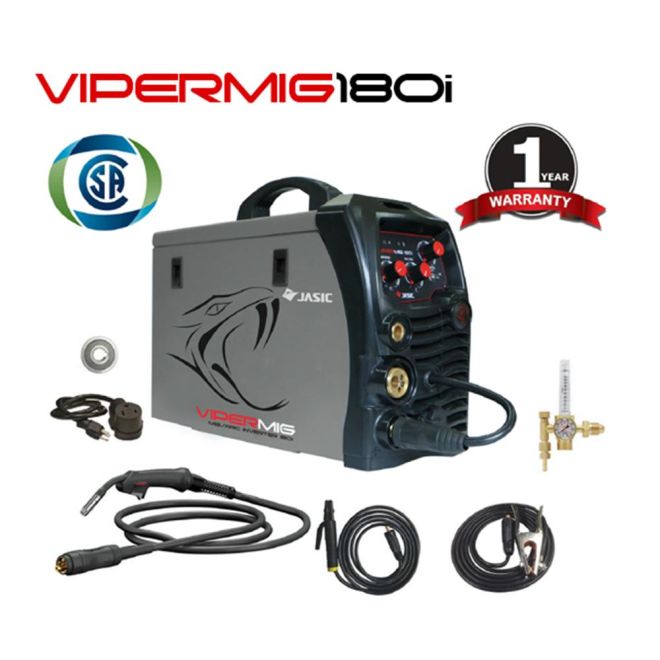

PACKAGE CONTENTS
1 x Vipermig180i Inverter MIG/STICK Power Source
1 x SB15 10ft Sure Grip MIG Torch
1 x Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp
1 x Razorflow Flow Regulator
1 x 230/115V Power Adapter
1 x Gas Hose Complete with fittings
1 x Instruction Manual
Optional:
15ft Tweco 2 Style MIG Torch

Color

PRODUCT DESCRIPTION

The MIG function allows you to weld with both Gas Shielded and Gasless wire applications. Easy step-less adjustment of voltage and wire feed make for easy setting of welding parameters giving excellent welding results. Wire Inch gives easy feeding of the wire during set up without gas wastage and the Burn Back adjustment leaves the wire out ready for the next weld. STICK welding capability delivers easy electrode welding with high-quality results, including cast Iron and stainless. Being 230/110v single phase gives great versatility. Ideal for DIY and home workshop. Designed and built to our specification. Certified to – AS/NZ60974-1
*Always refer to the recommended polarity setup as stated on the electrode packaging.
AFFORDABLE PERFORMANCE
The Vipermig180i DC MIG/STICK is a powerful entry-level MIG/STICK Welder for the DIY enthusiast or light industrial tradesman capable of running both gas shielded and gasless wires. The machine is a lightweight inverter with a smooth ARC characteristic and is fitted with a 10 AMP domestic plug as standard.

The Vipermig180i is also an Stick welding inverter capable of running electrodes up to 5/32in diameter. Perfect for small jobs or repair work when access to gas cylinders isn’t available.

This affordable machine will have you welding in no time with easy setup and convenient control layout. The Vipermig180i MIG/STICK is your go-to welding machine.

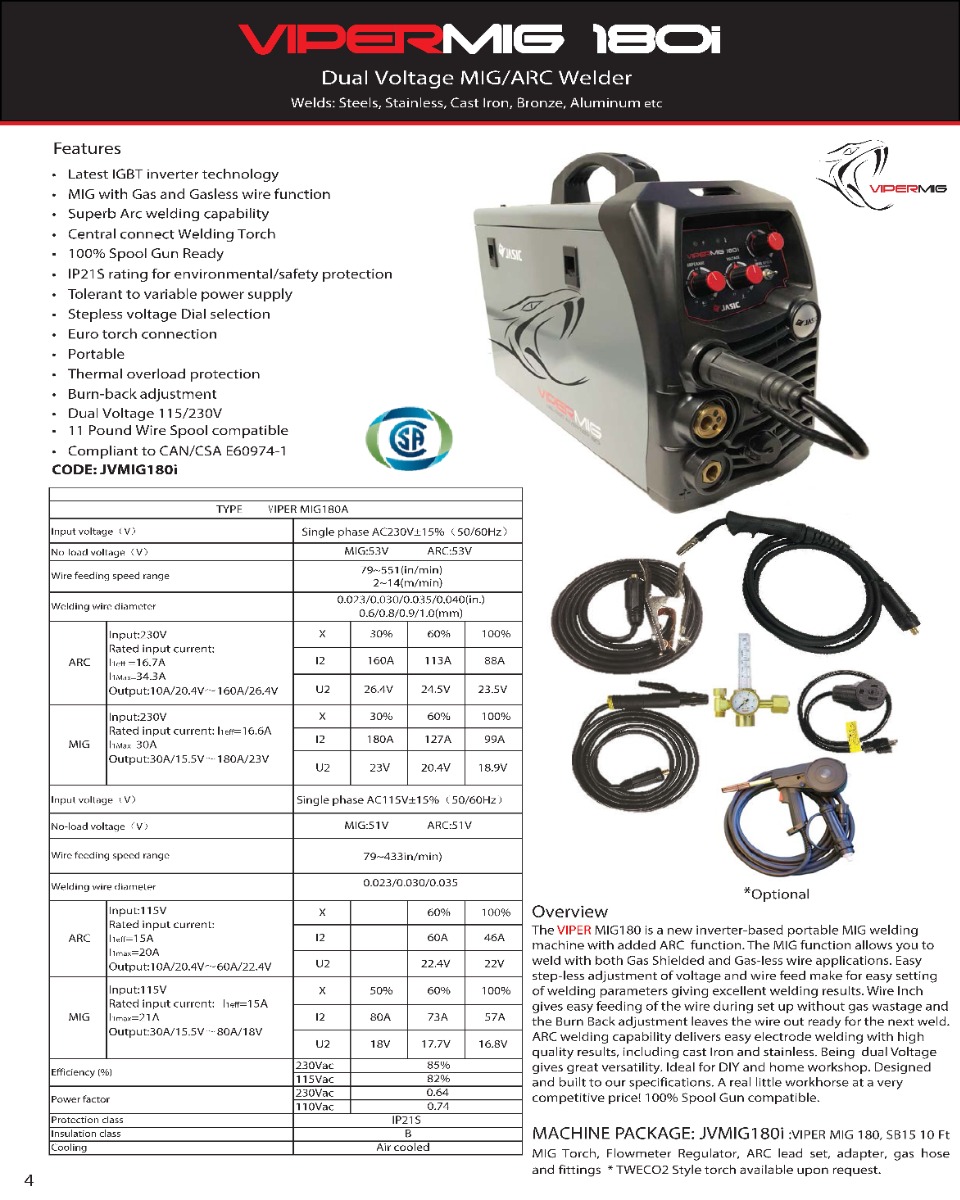

VIPERMIG 180 SPEC SHEET

TECHNICAL SPECIFICATIONS

Part Number JVMIG180i
Primary Input Voltage 230V/115V 1-Phase
Rated Input Power KVA 230V 16.7 Amps/ 115V 15 Amps
ieff AMPS 9.5 Amps MIG
Rated Output 30A/15.5V - 180A/23.0V
Welding Current Range MIG 30 - 180 Amps
Welding Current Range Stick 10-160 Amps
No Load Voltage 17 - 52 Volts
Duty Cycle 104 Deg F - MIG 30% @ 180Amps
Protection Class IP21S
Insulation Class F
Dimensions (in) LxWxH 19 x 8 x 12.5
Weight (lbs)13.5
Shipping Weight 20 lbs.
