PLANER 3-1/4" 4A 500W 1/32"DEPTH 1600RPM

INCLUDES

(1) 3-1/4" Planer Blade, 2/pk
(1) Blade Gauge
(1) Socket Wrench
(1) Guide Rule

PRODUCT FEATURES

4 AMP 500W motor delivers more output power for increased stock removal and superior finishes
High performance and durability at less expense
Sharp line on grip and sharp-cut design housing
Ergonomically designed handle fits your hand perfectly to provide maximum comfort and control
Planes up to 82 mm (3-1/4″) wide and 1 mm (1/32″) deep in a single pass
Shiplapping cuts up to 9 mm (11/32″)
Two-blade cutter head with 16,000 RPM delivers smooth finish and fast stock removal
Base plate foot protects workpiece and blades from scratches and damages
V-groove on base for easy chamfer cutting
Compact design at only 285 mm (11-1/4″) long
European specification unit is available with Dust nozzle for use with vacuum cleaner
Large, conveniently located depth setting knob for easy adjustment
Lock-on button for continuous use operation (country-specific)
Lock-off button for operator safety (country-specific)
Aluminum diecast bracket for high durability and long tool life
Guide rule for accurate and maximum use of planing width
Double insulated
High power-to-weight ratio; weighs only 5.7 lbs.

PRODUCT DESCRIPTION

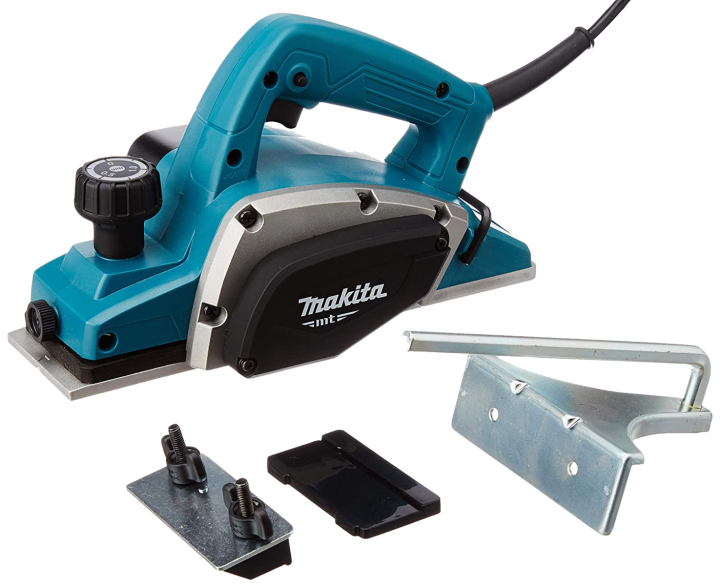

The Makita M1902B 3-1/4-Inch Planer delivers power, cutting capacity and ease of use. It is ideal for professional construction framing, window and door installation, and fine woodworking.

4 AMP Power

The M1902B features a 4 AMP motor that delivers more output power, with a two-blade cutter head and 16,000 RPM for increased stock removal and superior finishes. The M1902B is equipped with double edge carbide blades for added performance, and can plane up to 3-1/4 inches wide and 1/32 inches deep in a single pass. The rigid die-cast aluminum housing with all ball bearing construction is engineered for long tool life, and the precision-machined aluminum base delivers more planning accuracy.

Ease-of-Use Features

The M1902B weighs only 5.7 pounds for a high power-to-weight ratio, with an ergonomically-centered balance and rubberized front and rear handles for more comfortable operation. The machined aluminum and balanced planer drum is engineered for reduced vibration and added durability, and the spring-loaded stand elevates the base to protect the blades and workpiece. Additional ease-of-use features include a lock-on button for continuous operation, and an easy blade setting system for fast blade installation.

Engineered for Framing and Woodworking

The M1902B is engineered for professional construction framing, window and door installation, and fine woodworking.

TECHNICAL SPECIFICATIONS

Planing Width : 3-1/4"
Planing Depth : 3/32"
No Load Speed : 16,000 RPM
AMPS : 4
WATTS : 500
Overall Length : 11-1/4"
Net Weight : 5.7 lbs.
Max. no load speed : 17,000 RPM
Power Type : Corded
Type (Planers) : Handheld
Shipping Weight : 8 lbs.
