PRO EDGER 5/8"-11"

Brand

RUBI TOOLS

Be the first to review this product

In stock

Only 2 left

SKU

RUBI-16901

TTD $4,399.00

:
Highly wear-resistant polyethylene slides.
A vacuum cleaner can be easily fitted for dust extraction (ZERODUST).
Quick and simple grinding wheel change.
Chassis with carbon steel sheet.
Highly friction-resistant white polyethylene slides
Plastic handle.
Sealed single-row deep-groove ball bearings.

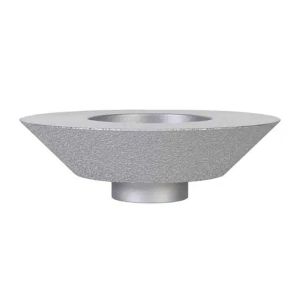

45° x 20 mm grinding wheel included (ref. 16946).
Compatible with ZERO DUST system by means of a clip for fixing a vacuum cleaner.
PVC plastic grinding wheel guard.
Fixing to angle grinder by means of a 14 mm diameter shaft and quick fastening belt.
Compatible with 115 & 125mm angle grinders with cable or battery up to 850 W. Up to 100 mm diameter handle.
Progressive wear beveling and mitering is adjustable by 10 mm.
A damp cloth is recommended for cleaning.
Lubrication is not necessary

Color

Rubi Tools Pro-Edger Portable Beveling And Miter Tool is a professional portable system for intensive use, especially designed for dry beveling and mitering principally of large format tiles. It can bevel and miter porcelain, ceramic and any natural stone material of any length.
It makes mitre cuts at 45° up to a maximum thickness of 20 mm, and with no thickness limitation for beveling.
Progressive beveling and mitering at different depths to prolong the useful life of the grinding wheel and make beveling easier for the user.
Compatible with 115mm and 125mm angle grinders with cable or battery that are easily and safely fitted thanks to the joint made with an M14 threaded shaft and quick-fastening belt.
Sealed high-speed bearings, to prevent the ingress of dust generated during the beveling or mitering.

Dimensions: 15" x 9" x 7"
Arbor Size: 3/16 / 5/16"
Mitre cutting length: ? "
Miter Thickness cut: 25/32
Inside diameter: 5/8
Shipping Weight: 10 lb.
