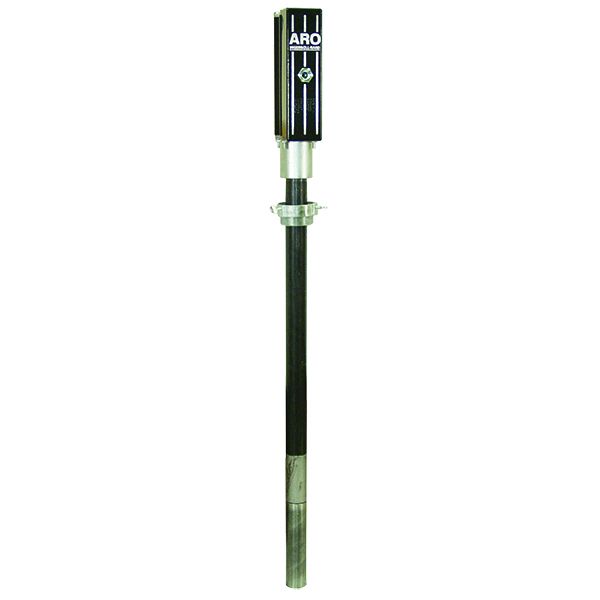

PUMP GREASE / OIL 50:1 3'MOTOR 2"STROKE 27-3/4"LONG 4GPM 362C 150/7500PS 35G 1/4NPT

INCLUDES

(1) ARO LM2305A-41-B 5:1 3" THUNDER SERIES AIR MOTOR PISTON PUMP 55 GALLON
(1) Bung adapter.
(1) Air inlet 1/4"(F)
(1) Fluid outlet 3/8"(F).

PRODUCT FEATURES

TYPE: Air Operated, Two-Ball Double Acting Oil Pump
50:1 Ratio Oil Pump
2" Air Motor
3"Stroke
For 55 gal Drum
1/4" air inlet. 3/8" outlet
MAX INLET: 150 PSI
MAX OUTLET: 7500 PSI
FLUID IN/OUT NPT (F): 1-1/2"-1/2"
FLUID INLET THREAD (IN.): Immersed
FLUID OUTLET THREAD (IN.): 3/8 - 18 N.P.T.F. - 1
WORK FLOW MAX: 4 GPM
Piston Ball Pump
Item Piston Ball Pump
All weather pumping
Stall-free operation
12" Drum cover to keep lubricant clean
Follower plate maintains pump prime
Flexible material hose
Adapter: Z-swivel
Quiet operation
High pressure "booster" control handle dispenses at line pressure during normal lubrication
Extra squeeze of the trigger delivers up to 10,000 psi to break loose tough fittings
DESIGN: Ideal for pumping grease, motor oil, gear oil, or transmission fluid, feeds lubricant from the lubricant reservoir into the tubing system of the automatic centralized lubrication system.
Lube-free air motor keeps noise levels within industry standards
Pump’s patented design improves flow, reduces pulsation, and extends service life
Offers simple self-service maintenance due to advanced design
Reduces service time, due to inline service design with no special tools required
Stall-free, ice-free air motor with tough, durable housing
Includes bung adapter

PRODUCT DESCRIPTION

ARO lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases

50:1 ratio Aro "Thunder" grease pump with 2" air motor for 35-pound. Includes bung adapter. Air inlet 1/4"(F) and fluid outlet 3/8"(F). Pump rated at 6 pounds per minute free flow and 2 pounds per minute working flow.

Includes bung adapter. Air inlet 1/4"(F) and fluid outlet 3/8"(F). Pump rated at 6 pounds per minute free flow and 2 pounds per minute working flow.

Reliable Design - Thunder pumps feature a patented, ice-free air motor contained in a rugged housing that is designed to withstand the harshest working environments.

Thunder grease pumps have 5/16" inlet holes in the sides of the bottom of the pick up tube. This helps eliminate problems caused by sucking plastic grease drum liners into the pump's lower section

The air valves and the piston are pre-lubricated. Thunder pumps do not require an air line lubricator

Thunder's patented valve design uses no trip rods, push pins, or springs. Instead of one mechanical pilot valve in the air motor, Thunder has two independent 3-way spool valves which work together to change the direction of the pump piston

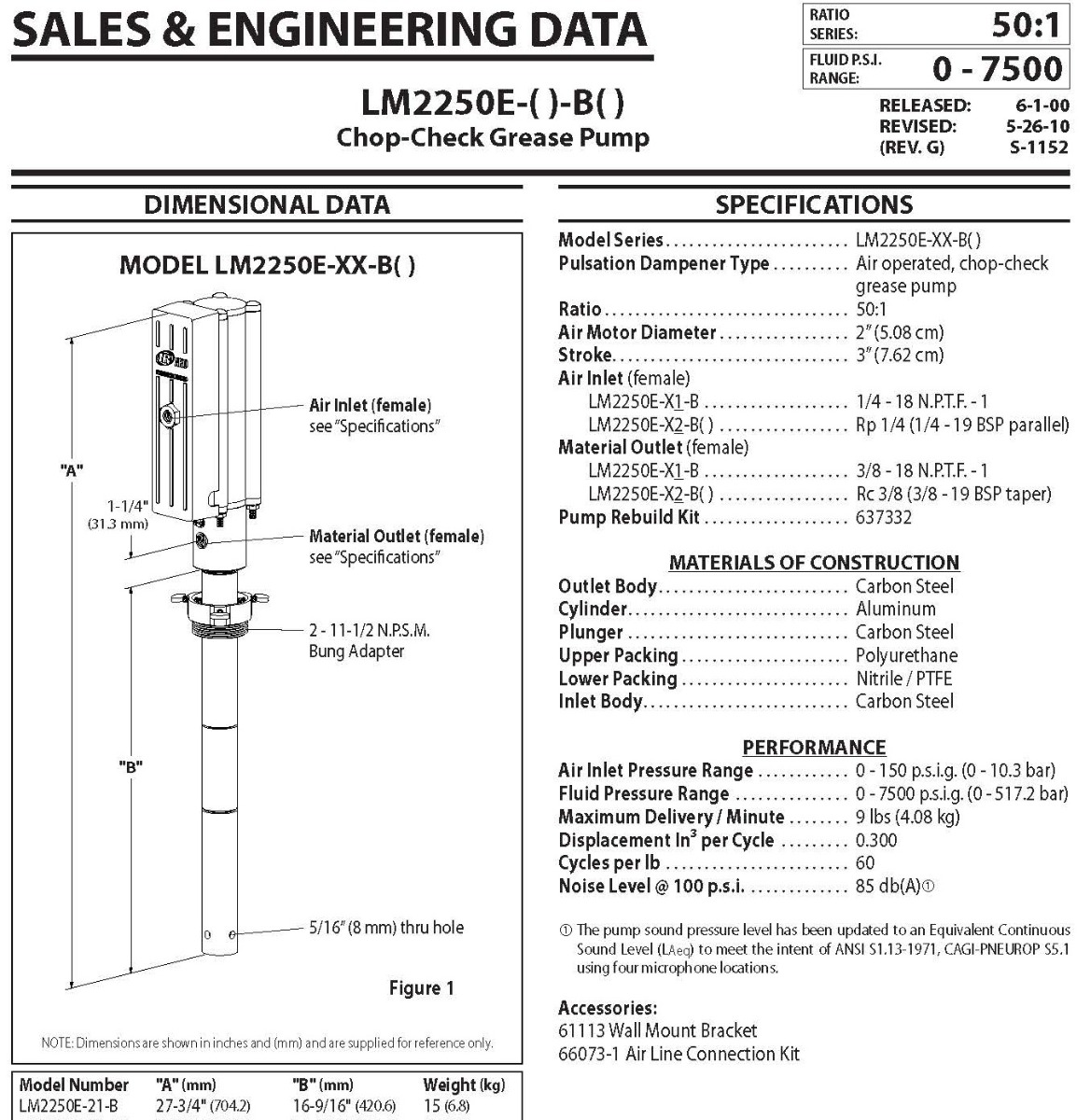

TECHNICAL SPECIFICATIONS

Model: LM2250E-21-B
Components: Pump Only
Compatible Chemicals: Gear Oil; Industrial Grease; Motor Oil; Standard Grease; Transmission Fluid
Fluid Inlet: Immersed
Fluid Medium: NLGI #1 Grease, NLGI #2 Grease
Max. Recommended Cycles/Minute: 80
Flow Rate lbs/min (kg/min): 2 (1)
Displacement (Cycle): 12.3 gal
Air Inlet NPTF (f): 1/4 in
Body Material: Carbon Steel
Power Source: Compressed Air
Ratio: 50:1
Material Outlet NPTF (f): 3/8 in
Flow Rate (Mass): 2.00 lb/min
Operating Pressure: 150.0 psi
Thread Type: NPT
Pump Ratio: 50:1
Drum Size: 35 lb
Air Inlet: 1/4
Container Volume: 35 Gal / lb
Air Motor Dia.: 2 in
Pump Type: Piston
Series: Thunder
Fluid Outlet: 3/8 in
Designated Fluid: Grease
Weight 17.0 LB
Shipping Weight: 25 lbs
