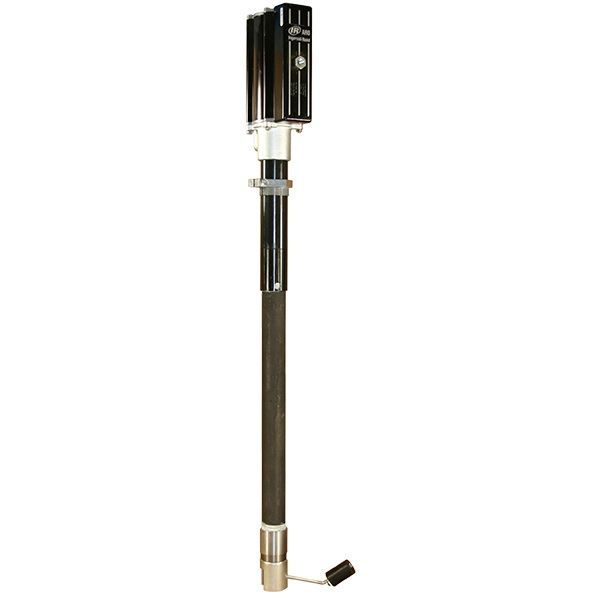

PUMP OIL PISTON 5:1 3'MOTOR 6GPM 51"LENGTH 150/750PS 55G 1/4NPT

INCLUDES

(1) ARO LM2305A-41-B 5:1 3" THUNDER SERIES AIR MOTOR PISTON PUMP 55 GALLON(1) ARO LM2305A-41-B 5:1 3" THUNDER SERIES AIR MOTOR PISTON PUMP 55 GALLON

PRODUCT FEATURES

TYPE: Air Operated, Two-Ball Double Acting Oil Pump
5:1 Ratio Oil Pump
3" Air Motor
For 55 gal Drum
1/4" air inlet. 1/2" outlet
40" pipe tube length. 2" Diameter
51" overall length
MAX INLET: 150 PSI
MAX OUTLET: 750 PSI
FLUID IN/OUT NPT (F): 1-1/2"-1/2"
FLUID INLET THREAD (IN.): 1-1/2" FNPT
FLUID OUTLET THREAD (IN.): 1/2" FNPT
MAX OUTPUT: 6 GPM
WORK FLOW MAX: 6 GPM
Flow Rate 6 GPM (Working), 9 GPM (Free)
Piston Ball Pump
Item Piston Ball Pump
All weather pumping
Quiet operation
DESIGN: Ideal for pumping grease, motor oil, gear oil, or transmission fluid, feeds lubricant from the lubricant reservoir into the tubing system of the automatic centralized lubrication system.
Lube-free air motor keeps noise levels within industry standards
Pump’s patented design improves flow, reduces pulsation, and extends service life
Offers simple self-service maintenance due to advanced design
Reduces service time, due to inline service design with no special tools required
Stall-free, ice-free air motor with tough, durable housing
Includes bung adapter

PRODUCT DESCRIPTION

Ingersoll Rand LM Series piston pumps deliver unmatched industrial-strength performance for pumping fluids with sizes to fit small (16 gal / 35 lb) or large (275 gal / 400 lb) containers. Working flow rates range from 2 to 6 gallons per minute. Pumps are offered from 3:1 to 50:1 ratios, in order to meet the requirements of any application. Our LM Series is ideal for pumping grease, motor oil, gear oil, or transmission fluid. The simple, durable design allows for piston pump service by any owner or qualified technician. Also look for our convenient grease and oil pump packages.

This dependable pump has fewer parts and a streamlined design that helps improve flow, reduce pulsations, and extends service life. It allows piston pump service by the owner or a qualified technician. Ingersoll Rand ARO LM2305A-41-B Lubrication Pump feeds lubricant from the lubricant reservoir into the tubing system of the automatic centralized lubrication system. The manometric pressure has to be high enough to compensate for pressure drops in the tubing, components (filters, valves, distributors) and friction points.

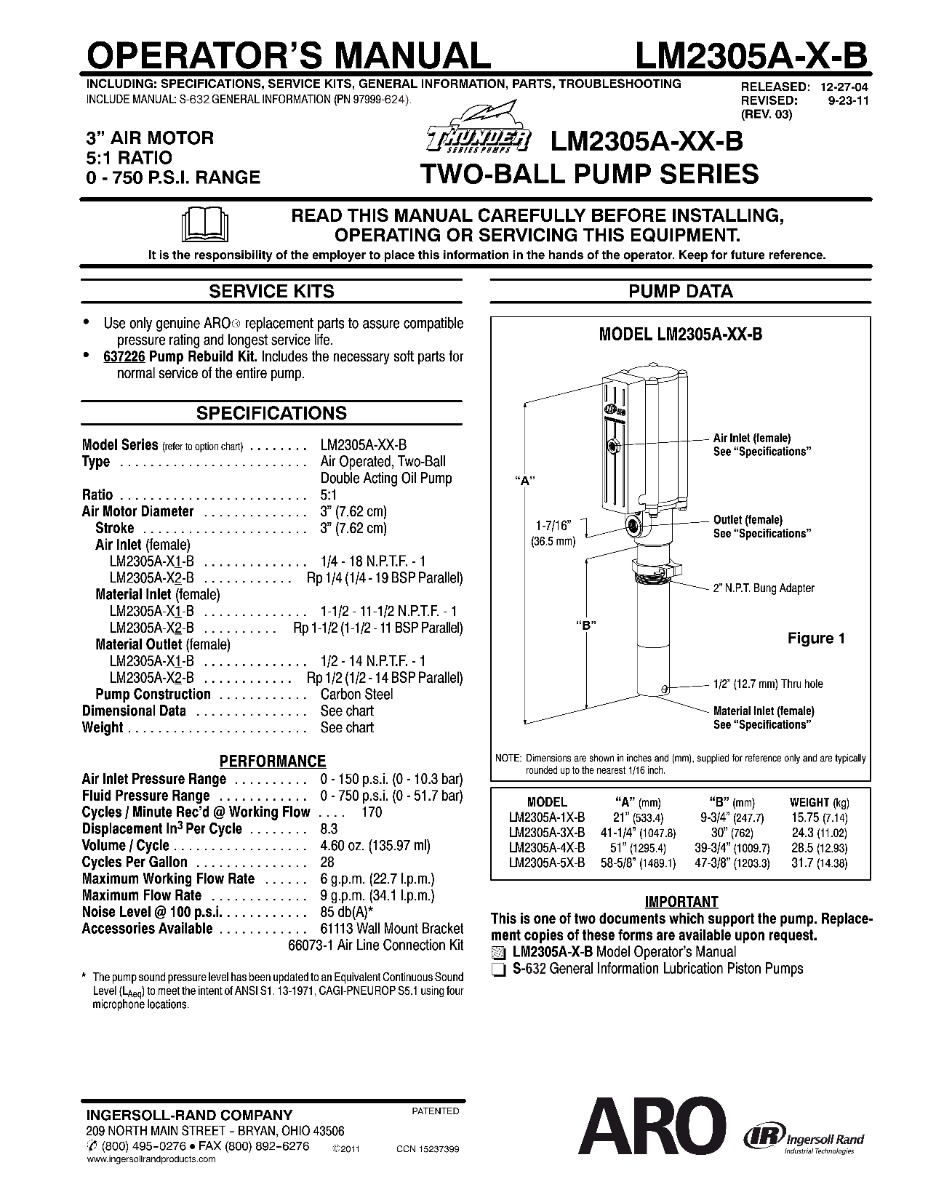

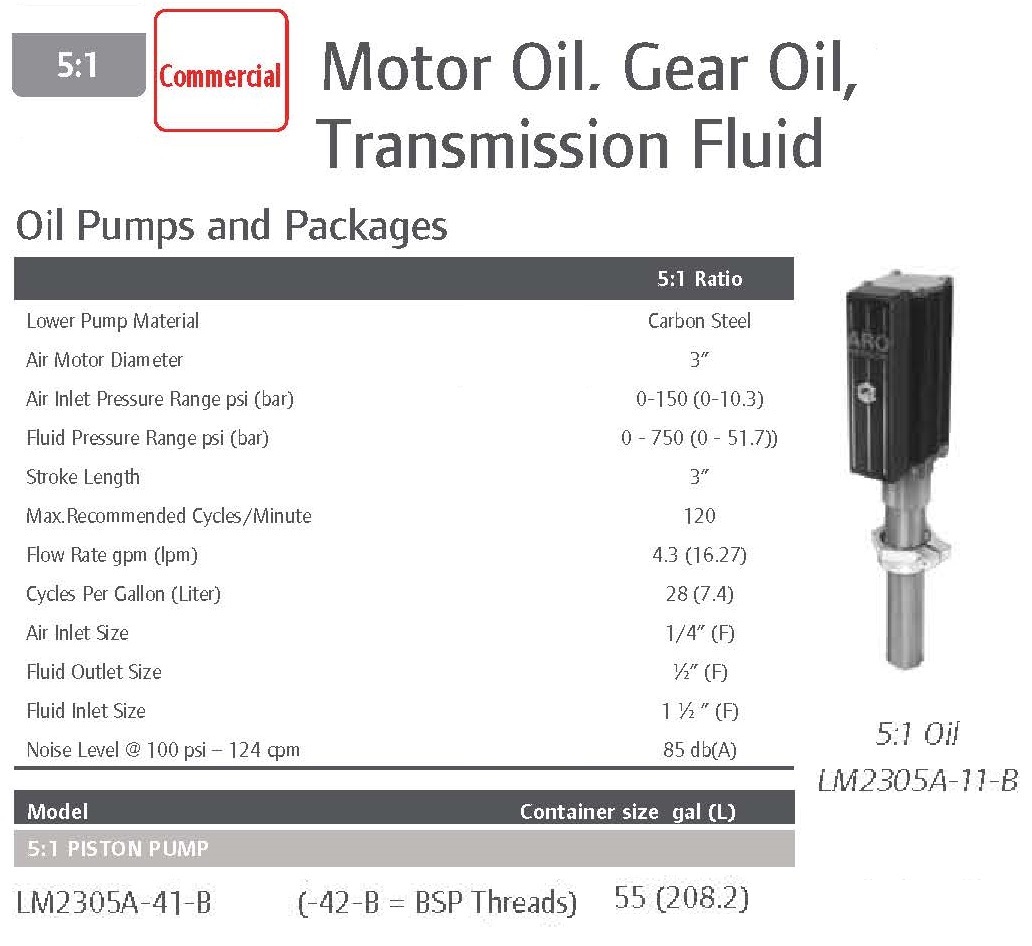

TECHNICAL SPECIFICATIONS

Model: LM2305A-41-B
Air Inlet: 1/4 - 18 NPTF - 1
CCN Number: 15234941
Discharge NPT (Inches): 1/2 - 14 NPTF - 1
Discharge Volume Per Cycle: 8.3 in³
Inlet Pressure (PSI): 0 - 150 psig (0 - 10.3 bar)
Material: Carbon Steel
Model Series: ARO Force Pneumatic Two Ball Piston Pumps
Motor: 3"
Mounting Type: 55 Gallon Container (208.2 L)
Other Factors: 3" Stroke Length
Packing Gland: Polyurethane (Upper & Lower)
Pressure Range: 0 - 750 psig (0 - 51.7 bar)
Product Notes: Steel Plunger
Pump Size: 5:1
Quick Specs: 5:1 3"OIL 55 GAL PUMP
Suction NPT (Inches): 1-1/2 - 11-1/2 NPTF - 1
Type: Two Ball
Inlet Port (in.) 1-1/2
Outlet Port (in.) 1/2
Pump Tube (dia.) 2-1/4
Pump Tube Length (in.) 39-3/4
Max. Fluid Temp. (°F) 150
Max. Suspended Solids (in.) 0
Dimensions L x W x H (in.) 52 x 6-1/2 x 4-1/4
Tool Weight: 28.5 lbs
Shipping Weight: 30 lbs
