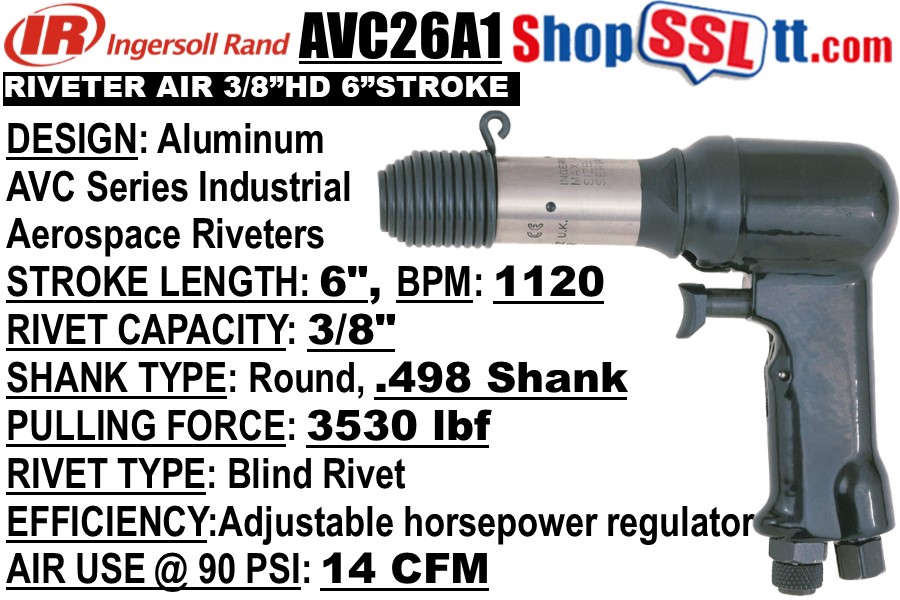

RIVETER AIR 3/8"HD 6"STROKE .5SHANK 1120BPM 3530FTLB 14CFM@90PSI 1/4N

Brand

INGERSOLL RAND

Be the first to review this product

In stock

Only 1 left

SKU

IR-AVC26A1

TTD $9,299.00

DESIGN: Aluminum AVC Series Industrial Aerospace Riveters are sturdy enough to withstand harsh work sites
STROKE LENGTH: 6"
RIVET CAPACITY: 3/8"
SHANK TYPE: Round, .498 Shank
PULLING FORCE: 3530 lbf
RIVET TYPE: Blind Rivet
EFFICIENCY: Adjustable horse power regulator
BPM: 1120
AIR CONSUMPTION @ 90 PSI: 14 CFM

Color

INCLUDES

(1) AVC26A1 Industrial Aerospace Riveters, 14 CFM, 1/4" Air Inlet
(1) Retainer

PRODUCT FEATURES

Highly precise and easy to control trigger throttle
Beehive type retainer designed for use with a variety of standard accessories
Adjustable horse power regulator for on the job power output changes
Industry standard pistol grip design
BEEHIVE RETAINER: Includes a standard spring beehive retainer that allows use of a wide variety of accessories.
BUILT-IN POWER REGULATOR: Change power on the job with no downtime.
DURABLE: AVC Series Industrial Aerospace Riveters are sturdy enough to withstand harsh work sites.
RELIABLE: You can count on this riveter to be one of the most trusted tools in your arsenal.
Lightweight Hammer won’t slow you down due to muscle fatigue.

PRODUCT DESCRIPTION

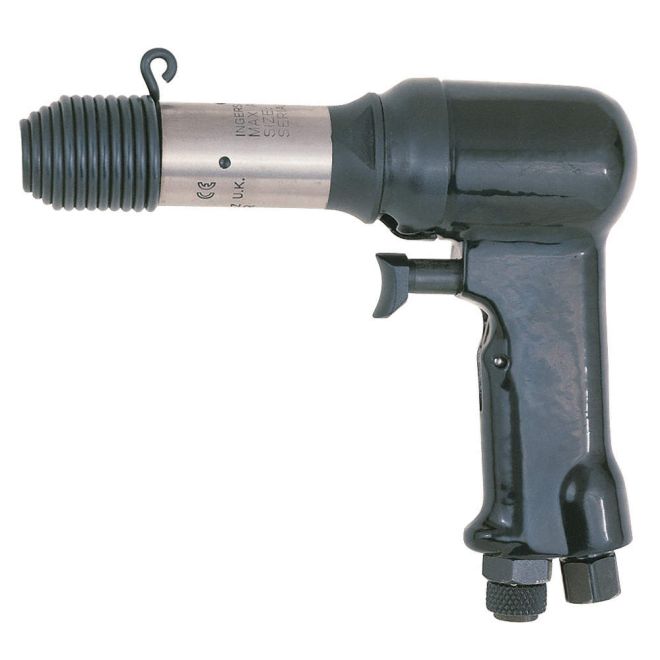

The Ingersoll Rand AVC26A1 Air Hammer / Aircraft Riveter is designed for use in a variety of commercial aerospace applications. This accurate and lightweight pistol grip tool easily handles rivets up to in 3/8" in diameter
Air-powered blind rivet installation tools compress blind rivets to join two pieces of metal. Rivets are placed into a pre-drilled hole, and the tool compresses the end and breaks the rivet mandrel to leave a clean surface. The rivet mandrel is then ejected from the tool. Blind rivets (sometimes called pop rivets) can be installed when there is access to only one side of the workpiece.

TECHNICAL SPECIFICATIONS

Stroke Length: 6 in
Air Inlet Size - Air Tools: 1/4 in NPT
Min. Hose Size: 1/2 in
Shank Size - Air Hammers: 0.498 in
Height: 3"
Air Inlet Size: 1/4 in NPT Female
Closed End Rivet Capacity: 3/8 in
Rivet Capacity (Inch): 3/8 in
Rivet Capacity (Decimal Inch): 0.3750 in
Pulling Force: 3,530 lbf
Rivet Type: Blind Rivet
Overall Length: 14 in
Duty Cycle: General Duty
Handle Type: Pistol Grip
Construction: Aluminum
Blows per Minute: 1,120
Max. Pressure: 90 psi
Shank Type: Round
CFM @ Full Load: 14.0
Dust Sealed Switch: No
Series: AVC Series
Standards: EN ISO 11148-4, EN ISO 15744, EN ISO 28927-10
Vibration Level: 8 m/sq sec
Air Inlet Gender: Female
Throttle Type: Trigger
Hammer Type: Riveting
Material Application: Aluminum, Dural and Soft Iron
Retainer Type: Standard Beehive
Sound Level: 103.6 dB
Tool Weight: 7 lbs
Shipping Weight: 10 lbs
