ROUTER 1/2"+1/4" PLUNGE 2.2HP 15A 1650W 2200RPM 2.3"PLUNGE DEPTH

INCLUDED

Straight Guide
Guide Holder Assembly
Collet Sleeve (1/4")
Collet Sleeve (3/8')
Straight Bit
Wrench

PRODUCT FEATURES

High performance and durability at less expense
Powerful 1,650 W motor delivers 22,000 RPM for the most demanding applications
0-60 mm (0-2-3/8″) plunge depth capacity for easy penetration into workpiece
Ergonomically contoured knob style handles with Soft grip
Quick release plunge depth adjustment along with 3 preset depth stops for added precision
Ergonomic rubberized handles designed for better fit and added comfort
Conveniently located plunge lock lever for efficient operation
Shaft lock requires one wrench to change bits
Chip deflector protects operator from flying chips and debris
Can be placed upside down when replacing accessories or not in use
Can be connected to dust extraction system with optional dust nozzle
Externally accessible brushes for easy serviceability
Changing accessories via key and lock button
With plastic guard for vision protection
Made of polyamide and aluminum alloy structure and base, for greater protection of the machine
Double insulated

PRODUCT DESCRIPTION

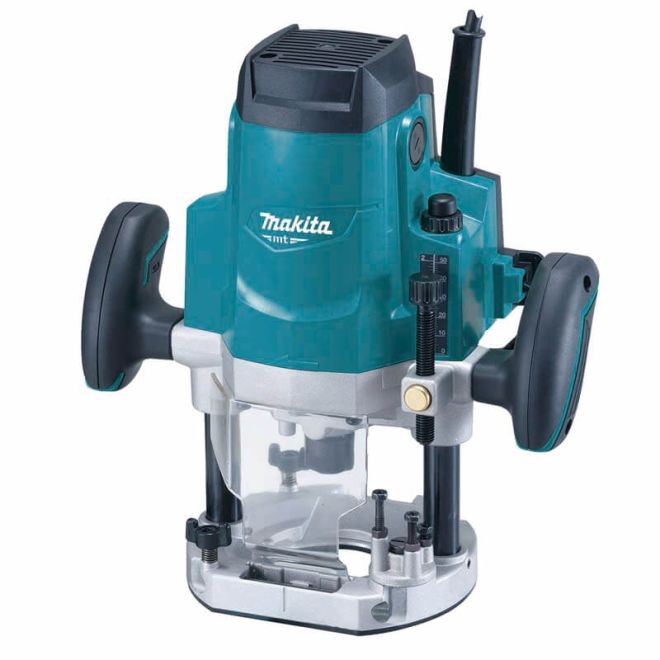

The Makita 2.2 HP Plunge Router, model M3600B, delivers powerful precision with smooth plunge action and superior performance. The M3600B features 15 AMP power, ease-of-use features, and an increased plunge capacity for a wide range of applications including fine woodworking, cabinetry, windows, doors, and more.

15 AMP Power and 22,000 RPM for Smooth Routing

The M3600B features a 15 AMP motor with a no-load speed of 22,000 RPM. It has a 0” – 2-3/8” plunge depth capacity for easy penetration into the work piece, with linear ball bearings for smooth plunge action. The M3600B is engineered with oversized ball bearing construction – as well as a built-in fan with labyrinth construction to minimize dust from entering the tool – for longer tool life.

Ease-of-Use Features

The M3600B has ergonomic rubberized handles with a built-in two-finger switch for added control, with a lock-on trigger for continuous operation. The quick release plunge depth adjustment with micro control and three preset depth stops are engineered for added precision, and the plunge lock lever is conveniently located for efficient operation. The M3600B is equipped with a shaft lock for quick and easy bit changes, and the “tool-less” template guide system provides quick and easy installation and removal. Additional ease-of-use features include easy-to-read depth scales, a chip deflector engineered to direct chips away from the operator, and a durable flat top design for stability when changing bits.

Engineered for Finish Woodworking

The M3600B uses 3/8", 1/4" and 1/2" shank router bits, and is engineered for fine woodworking, cabinetry, furniture making, counter tops, decking, windows and doors, and general carpentry. It is ideal for professional woodworkers, furniture makers, professional craftsmen, cabinet makers, deck builders, boat builders, and general contractors seeking a best in class 2.2 HP plunge router.

TECHNICAL SPECIFICATIONS

Amps : 15
Horse Power : 2.2
Continuous rating input : 1,650W
Collet Capacity : 12 mm or 1/2"
Plunge Capacity : 0 – 60 mm (0 – 2-3/8")
No Load Speed (RPM) : 22,000
Vibration Level : Cutting Grooves in MDF: 2.5 m/s²
Sound Pressure Level : 86 dB(A)
Sound Power Level : 97 dB(A)
Dimensions (L x W x H) : 284x148x300 mm (11-1/8″x5-7/8″x11-3/4″)
Net weight : 5.5 kg (12.2 lbs.)
Replacement Carbon Brush: CB211
Power supply cord : 2.0 m (6.6 ft.)
Shipping Weight : 18
