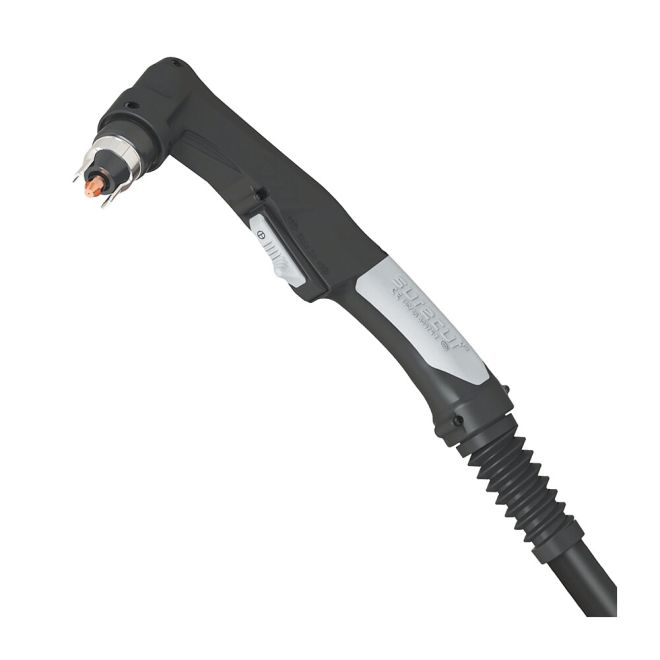

TORCH PLASMA 19.5'AIRCOOL 100A@60%DUTY 710CFM RAZORCUT 80

Be the first to review this product

In stock

Only 13 left

SKU

JTA-J100XC-6

TTD $2,139.00

PRODUCT FEATURES

PRODUCT CODE: J100XC
19.5 FT Air Cooled 30-100 Amp Plasma Torch
Duty Cycle: 60% @ 100Amps
Air pressure: 70 - 80psi (4.8 -5.5 bar)
Flow: 710cfm (200l/m)
Pilot: 18-22A
Ignition: Non H/F
Suit RAZORCUT 80
Select 2T / 4T operation
Euro connection
Pilot Arc Start lets you start the arc before contacting the workpiece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
- 30mm cut on mild steel / 16mm cut on stainless steel / 16mm cut on aluminium. Using RAZOR CUT 80I.
Developed specifically to enhance and improve the cut quality of the RAZORCUT80i machine
Powerful, fast and accurate cutting capability.
Effortless starting of the cut with powerful, fast and accurate cutting capability
Longer life cycle consumable electrodes and cutting tips.
Wide range of applications: sheet metal fabrication, industrial use, site work, automotive, ducting work, repair and maintenance services.

Color

PRODUCT DESCRIPTION

High quality J100XC Plasma torch with Euro connection,developed specifically to enhance and improve the cut quality of the RAZORCUT80i machine. Connection of the Plasma torch provides effortless starting of the cut with powerful, fast and accurate cutting capability, additional is the benefit of longer life cycle consumable electrodes and cutting tips. Suitable for a wide range of applications including Industrial use, sheet metal fabrication, site work, automotive, ducting work, repair and maintenance services.

SET UP PROCEDURE
Connect the J100XC Plasma Torch to the machine. Insert the torch connection into the torch connection receptacle at the front of the machine and screw up hand tight. Caution: Be careful not to bend the pins located inside the torch connector.
(2) Connect the earth lead to the output terminal of the machine and tighten.
(3) Connect the air supply to the air connection located at the rear of the machine. Turn on the air supply
(4) Connect the machine to the correct power supply and switch on the machine using the on/off switch located at the rear of the machine.
(5) Select 2T / 4T operation
Operating procedure using the 2T / 4T Function with J100XC torch.
Set torch operation 2T / 4T.
• When 2T operation is selected press trigger Arc starts, release trigger Arc stops.
• When 4T operation is selected press and release trigger Arc starts, press and release trigger Arc stops.
(6) Set amperage dial.

TECHNICAL SPECIFICATIONS

Current : 30-100 Amps
Duty Cycle: 60%@100Amps
Air pressure: 70 - 80psi (4.8 -5.5 bar)
Flow: 710cfm (200l/m)
Pilot: 18-22A
Ignition: Non H/F
Shipping Weight 13 lbs.
