VALVE BALL PVC 1
In stock
Only 33 left
SKU
PVC-V-211208
TTD $17.25
PRODUCT FEATURE
Inline Full Port Ball Valve with PVC slip connections
Quarter Turn Operation
One Piece Construction
150# Max Pressure
Easy Grip T-Handle
Inline Full Port Ball Valve with PVC slip connections
Quarter Turn Operation
One Piece Construction
150# Max Pressure
Easy Grip T-Handle
INCLUDES
(1) 1" PVC Slip Ball Valve
PRODUCT DESCRIPTION

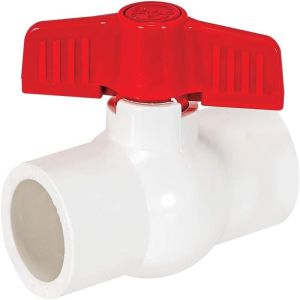

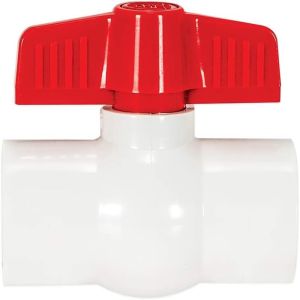

PVC one piece inline ball valve has a t-handle and slip (glue) openings on both ends. The valve body is made of corrosion resistant PVC which provides a lightweight and high strength valve suitable for cold water, venting, waste, agricultural and irrigation applications. Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve and is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter or the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and termed reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.
TECHNICAL SPECIFICATIONS
Material: Polyvinyl Chloride
Item Dimensions LxWxH: 4 x 2.25 x 3.5 inches
Inlet Connection Type: Full port
Maximum Operating Pressure: 150 Pound per Square Inch
Number of Ports: 1
Valve Type: Ball Valve
Item Weight: 0.49lbs
Shipping Weight: 1lb
(1) 1" PVC Slip Ball Valve
PRODUCT DESCRIPTION
PVC one piece inline ball valve has a t-handle and slip (glue) openings on both ends. The valve body is made of corrosion resistant PVC which provides a lightweight and high strength valve suitable for cold water, venting, waste, agricultural and irrigation applications. Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve and is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter or the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and termed reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.
TECHNICAL SPECIFICATIONS
Material: Polyvinyl Chloride
Item Dimensions LxWxH: 4 x 2.25 x 3.5 inches
Inlet Connection Type: Full port
Maximum Operating Pressure: 150 Pound per Square Inch
Number of Ports: 1
Valve Type: Ball Valve
Item Weight: 0.49lbs
Shipping Weight: 1lb
| SKU | PVC-V-211208 |
|---|---|
| Weight | 1.000000 |
