VIBRATOR
In stock
Only 1 left
SKU
KEY-EY-20-3
TTD $3,209.00
PRODUCT FEATURES
Dual Elements Air Cleaner
Cyclone Chimny Air Cleaner
Cable(Remote) Speed Control
Oil Sensor
Dual Elements Air Cleaner
Cyclone Chimny Air Cleaner
Cable(Remote) Speed Control
Oil Sensor
INCLUDES

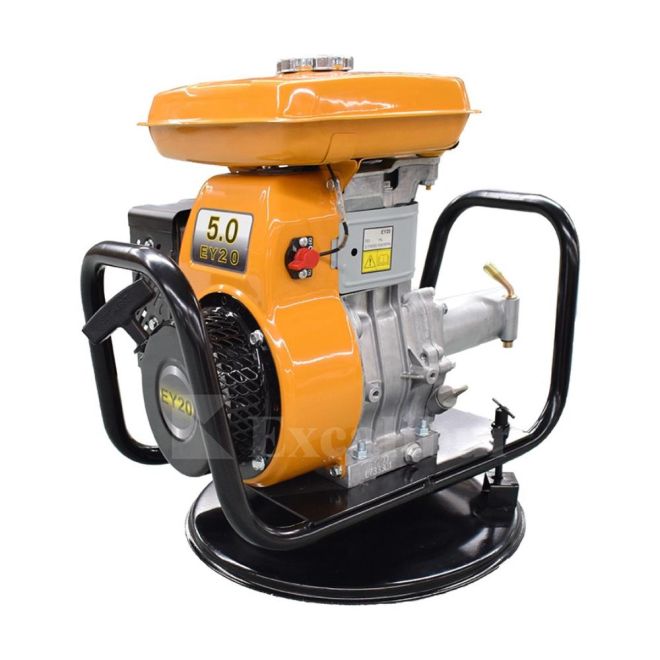

(1) Engine Ey20-3 5.0HP CE Certification Robin Gasoline Engine for Concrete Vibrator Machine
PRODUCT DESCRIPTION
The product general-purpose 4-stroke gasoline engine sold by our company applies to domestic machinery,water pump sets,generator,small machine tools,road surface maintenance machinery,plant protection machinery and gardening machinery,etc.With the characteristics of low gravity and light and compact,to improve the matching ability and reduce vibration,excellent rust-proof and anti-corrosion,simple structure,easy operation.
TECHNICAL SPECIFCATIONS
Type: Air-cooled, 4-cycle, upright single cylinder, side, valve, horizontal PTO shaft
Bore x Stroke mm(in.): 67x 52( 2.64 x 2.05 )
Piston displacement cc(cu.in.): 183( 11.17 )
Continuous output kW(HP)/rpm: 2.2(3.0)/3000, 2.6(3.5)/3600
Maximum output:kW(HP)/rpm: 3.7(5.0)/4000
Maximum torque N?m(kgf?m)/rpm(lbf?ft/rpm): 9.3(0.95)/2800, (6.87/2800)
Directon of rotation: Counter clockwise as viewed from PTO shaft side
Fuel: Automobile(unleaded)gasoline
Fuel Tank capacity liter(US gal.): 3.8(1.00)
Lubricant: Engine oil SAE 10W-30, 20W, 30W
Lubrication: Mechanical splashing type
Lubricationg oil capacity liter(US gal.): 0.6(0.156)
Carburetor: Float type
Starter: Recoil starter
lgnition system: Transistorised
Spark plug: NGK B6HS
Govemor: Centrifugal flyweight type
Item Weight (lb): 33.52
Dimension length x width x height mm(in.): 303x326x392 (11.93x12.83x15.43)
Shipping Weight: 35lbs
(1) Engine Ey20-3 5.0HP CE Certification Robin Gasoline Engine for Concrete Vibrator Machine
PRODUCT DESCRIPTION
The product general-purpose 4-stroke gasoline engine sold by our company applies to domestic machinery,water pump sets,generator,small machine tools,road surface maintenance machinery,plant protection machinery and gardening machinery,etc.With the characteristics of low gravity and light and compact,to improve the matching ability and reduce vibration,excellent rust-proof and anti-corrosion,simple structure,easy operation.
TECHNICAL SPECIFCATIONS
Type: Air-cooled, 4-cycle, upright single cylinder, side, valve, horizontal PTO shaft
Bore x Stroke mm(in.): 67x 52( 2.64 x 2.05 )
Piston displacement cc(cu.in.): 183( 11.17 )
Continuous output kW(HP)/rpm: 2.2(3.0)/3000, 2.6(3.5)/3600
Maximum output:kW(HP)/rpm: 3.7(5.0)/4000
Maximum torque N?m(kgf?m)/rpm(lbf?ft/rpm): 9.3(0.95)/2800, (6.87/2800)
Directon of rotation: Counter clockwise as viewed from PTO shaft side
Fuel: Automobile(unleaded)gasoline
Fuel Tank capacity liter(US gal.): 3.8(1.00)
Lubricant: Engine oil SAE 10W-30, 20W, 30W
Lubrication: Mechanical splashing type
Lubricationg oil capacity liter(US gal.): 0.6(0.156)
Carburetor: Float type
Starter: Recoil starter
lgnition system: Transistorised
Spark plug: NGK B6HS
Govemor: Centrifugal flyweight type
Item Weight (lb): 33.52
Dimension length x width x height mm(in.): 303x326x392 (11.93x12.83x15.43)
Shipping Weight: 35lbs
| SKU | KEY-EY-20-3 |
|---|---|
| Weight | 35.000000 |
