WRENCH IMPACT AIR 1/2"1350 FTLB 1220BPM 8500RPM 24CFM@90 PSI 1/4NPT

INCLUDES

(1) 2235TIMAX GENERAL DUTY AIR IMPACT WRENCH, 1/2 IN DRIVE, 900 TO 930 FT-LB TORQUE, 24 CFM AIR FLOW

PRODUCT FEATURES

POWER: The high torque output of the powerful vane motor is optimized to increase safety and control over the tool.
DURABILITY: This impact wrench can handle even the harshest of work environments.
RELIABILITY: If you're looking for an impact wrench series to last through the years, the 2235TiMAX Series is the one for you.
Finely tuned impact mechanism and motor deliver more torque, durability, and efficiency
1,350 ft-lb nut-busting torque

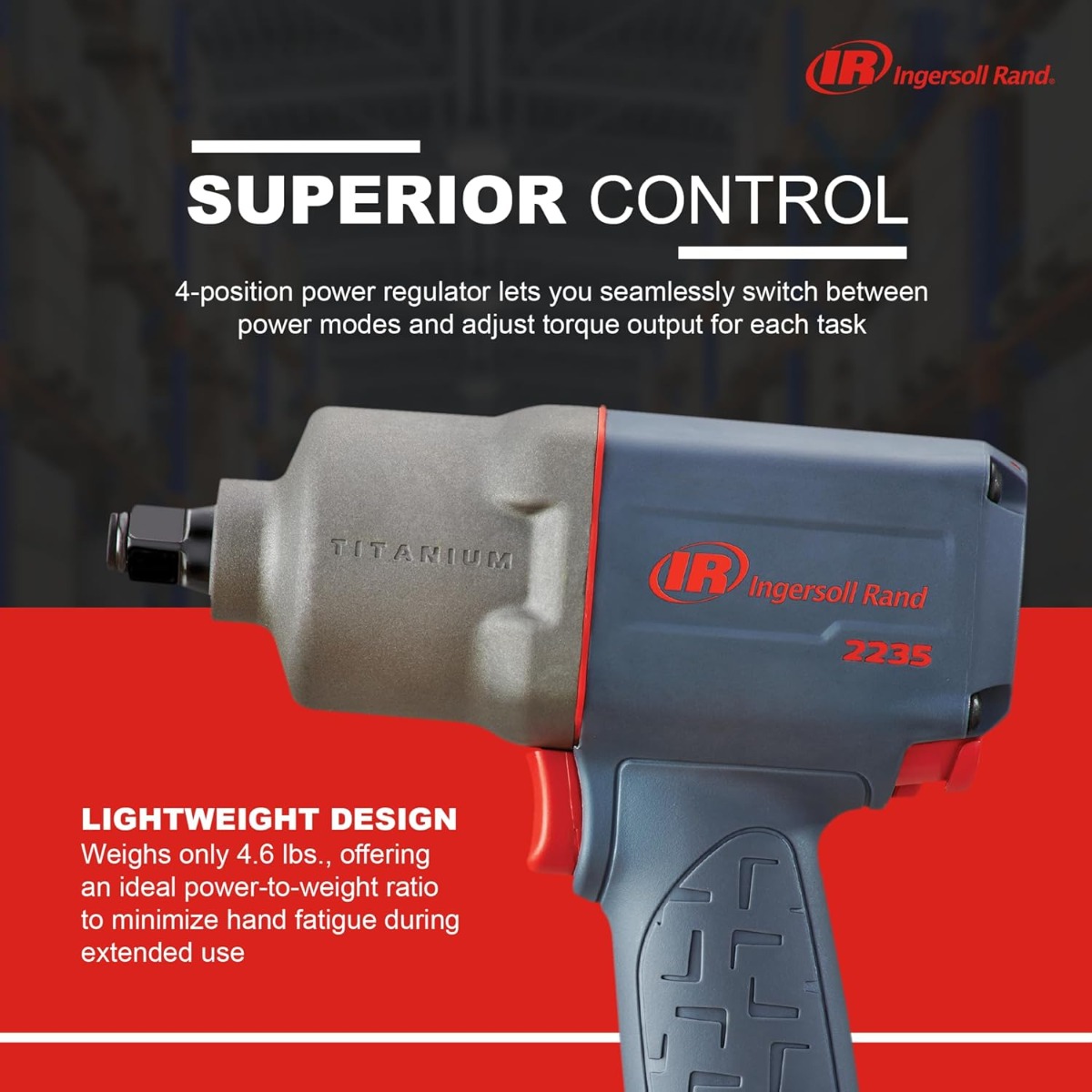

A lightweight, balanced, air impact wrench that weighs just 4.6lbs
Titanium hammer case is designed to be strong and durable, to protect the interior components of the air impact wrench

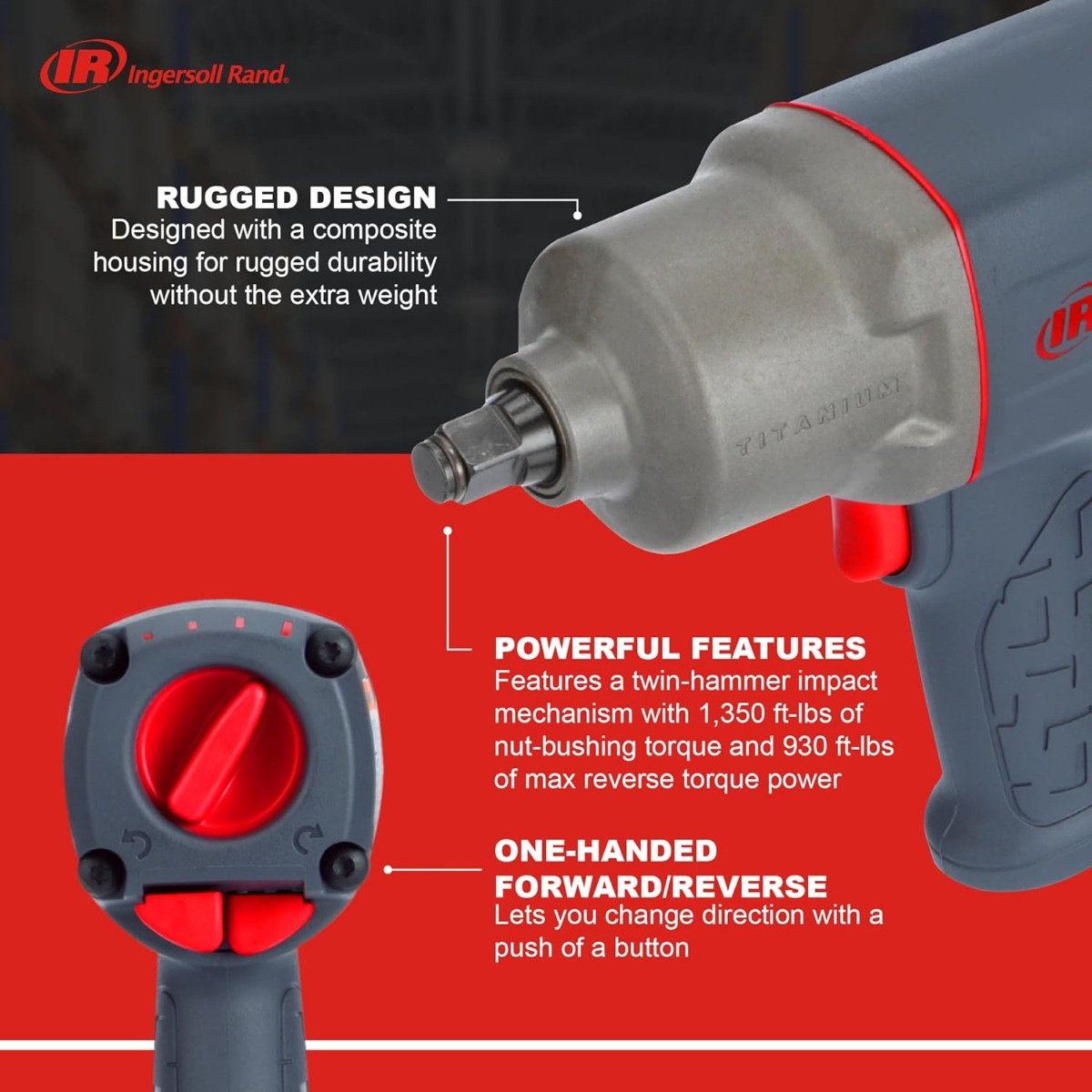

Impact- and chemical-resistant housing protects against repeated drops and exposure to shop fluids

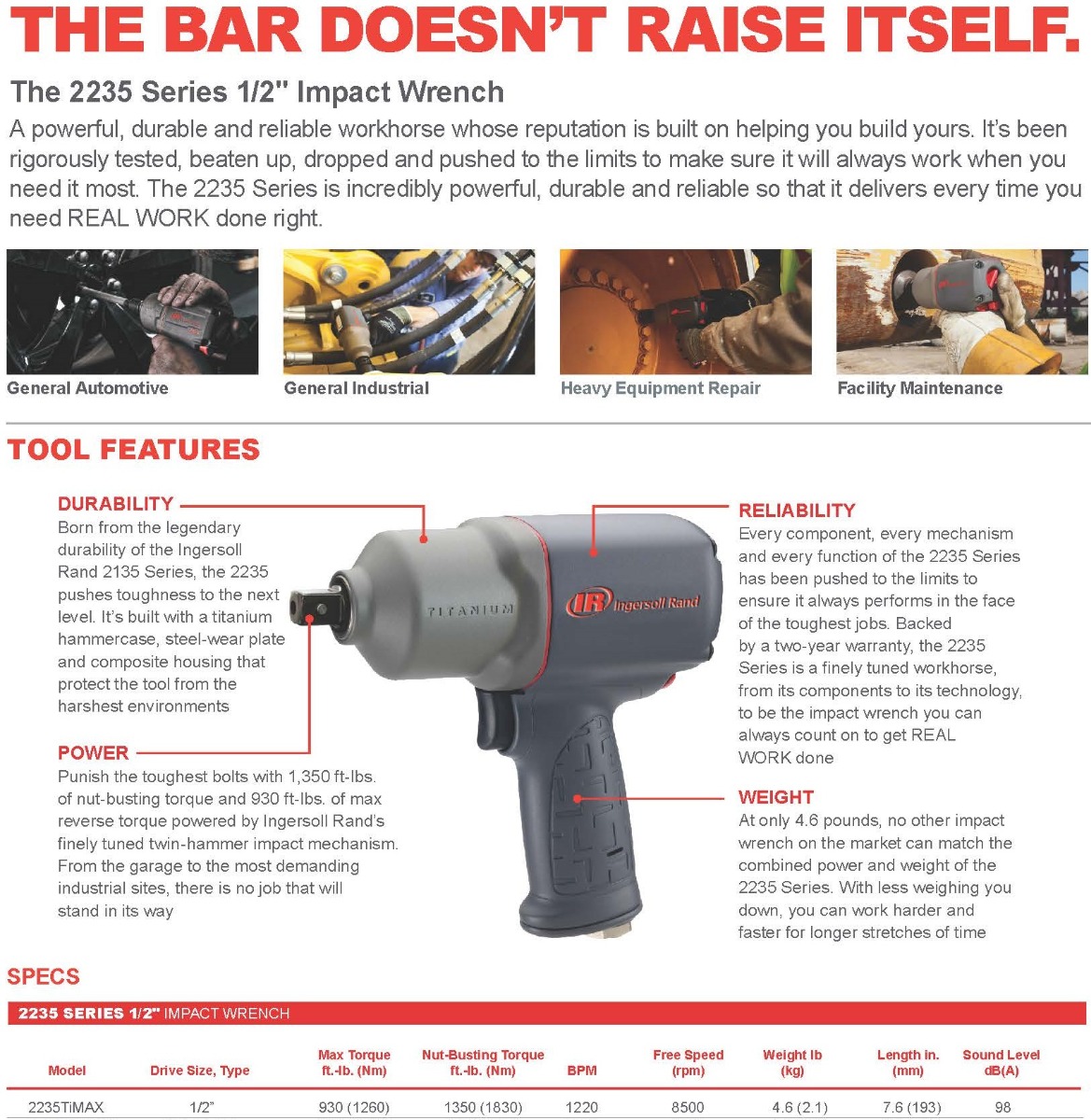

ROBUST: Every component, every mechanism and every function of the 2235 Series has been pushed to the limits to ensure it always performs in the face of the toughest jobs. The 2235 Series is a finely tuned workhorse, from its components to its technology, to be the impact wrench you can always count on to get REAL WORK done
2235QTiMAX feature patented quiet tool technology reducing sound levels without compromising best-in-class power performance
Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction

PRODUCT DESCRIPTION

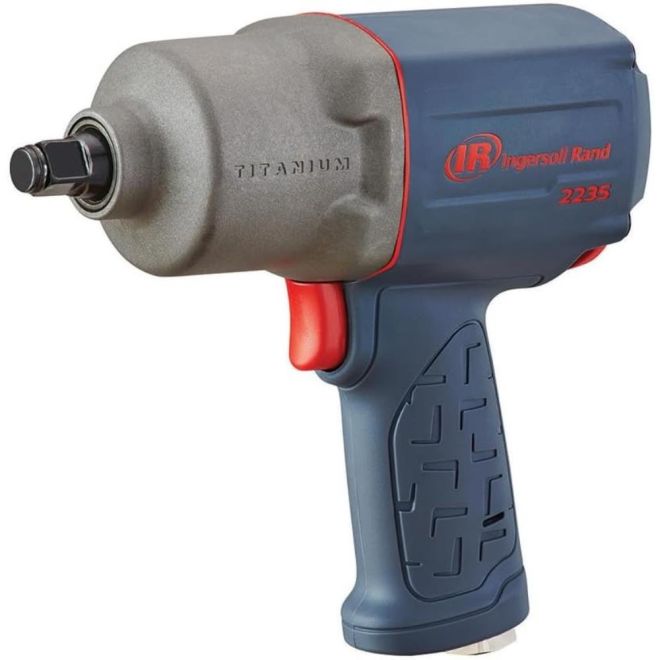

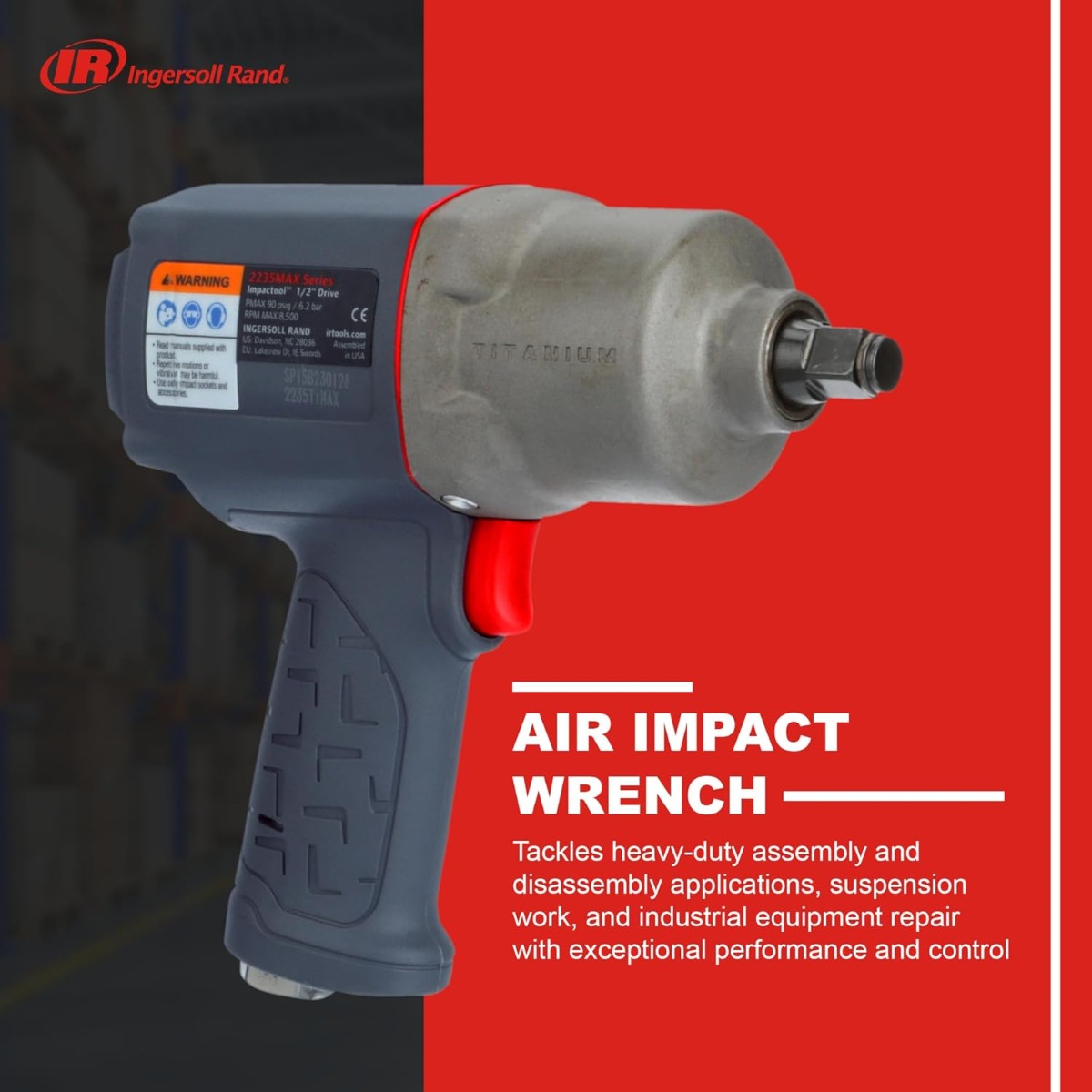

Power through demanding automotive and jobsite tasks with the Ingersoll Rand 2235TiMAX 1/2-Inch Drive Air Impact Wrench. Designed to work with an air compressor, this powerful impact wrench delivers up to 1,350 foot-pounds of nut-busting torque in a lightweight design that helps minimize fatigue. The four-position power regulator and one-handed forward/reverse button give you complete control, so you can easily fine-tune torque output and direction to suit the task at hand.

TECHNICAL SPECIFICATIONS

Model: 2235TiMAX
Configuration: Pistol
Actuation: Trigger
Drive Size: 1/2 in.
Drive Type: Square, Hog-Ring
Nut-Busting Torque (ft-lbs): 1350
Nut-Busting Torque (Nm): 1830
Forward Torque (ft-lbs): 900
Forward Torque (Nm): 1220
Max Reverse Torque (ft-lbs): 930
Max Reverse Torque (Nm): 1260
Blows per minute: 1220
Free Speed (RPM): 8500
Impacting Sound Level dB(A) -- ISO15744 (pressure/power): 98.0 / 109.0
Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power): 103.6 / 114.6
Vibration Level m/s2 (K): 9 (2.8)
Width (in): 2.9
Width (mm): 74
Height (in): 7.2
Height (mm): 183
Length (in): 7.6
Length (mm): 193
Air Inlet: 1/4 in.
Min Hose Size (in): 3/8
Min Hose Size (mm): 10
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (L/min): 680
Average Air Consumption (cfm): 6
Average Air Consumption (L/min): 170
PSI: 90
Bar: 6.2
Tool Weight: 4.6 lbs
Tool Weight (kg): 2.1
Shipping Weight: 7 lbs
