PLASMA CUTTER 45 220V 19'2T/4T TORCH 30%@45A

PRODUCT DESCRIPTION

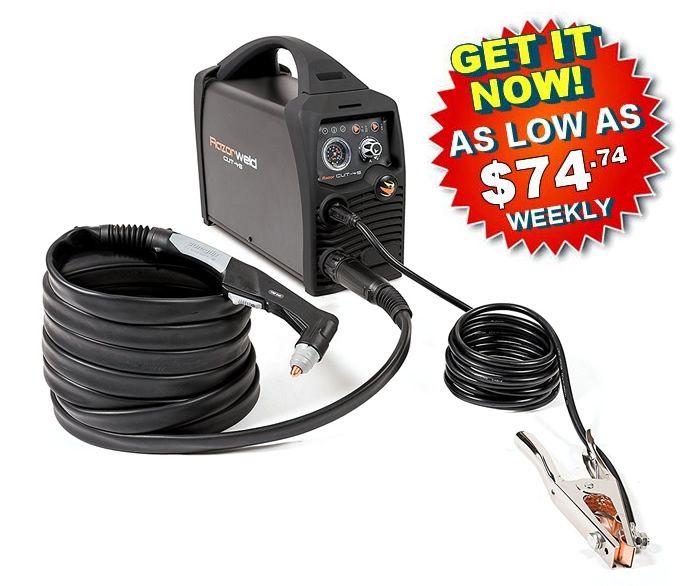

The Razor Cut45 is a single phase inverter Plasma Cutter capable of clean cutting 1/2in mild steel and severing 3/4in mild steel. The machine is light weight and extremely portable and is suited to light to medium industrial work. This powerful machine is perfect for site work as well as panel and fabrication work.

The machine comes standard with a 19-foot torch making it extremely versatile for making cuts away from the machine itself. The torch can be used in either 2T or 4T modes making it more comfortable for longer cuts.

The RAZORCUT45 is an inverter-based Plasma cutting machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from a quality Plasma Cutter. The RAZORCUT45 produces a high-temperature plasma stream providing effortless cutting of all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminum brass, etc . The RAZORCUT45 is equipped with a high-quality TRF45 Plasma torch with Euro connection, developed specifically to enhance and improve the cut quality of the RAZORCUT45 machine. The connection of the TRF45 Plasma torch provides effortless starting of the cut with powerful, fast and accurate cutting capability, additional is the benefit of longer life cycle consumable electrodes and cutting tips. The RAZORCUT45 is an exceptional machine that is suitable for a wide range of applications including sheet metal fabrication, light industrial use, site work, automotive, ducting work, repair and maintenance services. The RAZORCUT45 is packaged with a tough TRF45 Plasma torch, earth lead and air regulator. The RAZORCUT45 gives you the best of both worlds great portability, with the power to get the job done. Built to our
specification and manufactured and approved to CSA/CAN 60974-1

Optional extras for the machine include an air filter unit to maintain clean and dry air as well as a circle cutting kit with roller guide.

TECHNICAL SPECIFICATIONS

Part Number JRWPC45LXC
Power Supply / Phases (V-Ph) 230v - 1 +/- 15%
Duty Cycle @ 40°c3 0% @ 45Amps
Rated Power (KVA) 6.5
imax (A) 29.2
ieff (A) 15
Output Current Range (A) Plasma 20-45
Rated Output Voltage (V) 98
Insulation Class F
Protection Class IP21S
Plasma Arc Starting Pilot L/F
Air Flow Pressure (MPA) 0.5 (75 psi) (6 CFM)
Air Flow Rate l/min 189
Cutting Thickness - Clean (in) 1/2 Mild steel
Cutting Thickness - Severance (in) 3/4 Mild steel
Dimensions (in) 16 x 6.5 x 13
Approved to CSA/CAN 60974-1
Weight (lbs) 22
Shipping Weight 37 lbs.
